3-Station Multi-Gym | BodyKore (MTI4005)

Three Selectorized Strength Stations in One System

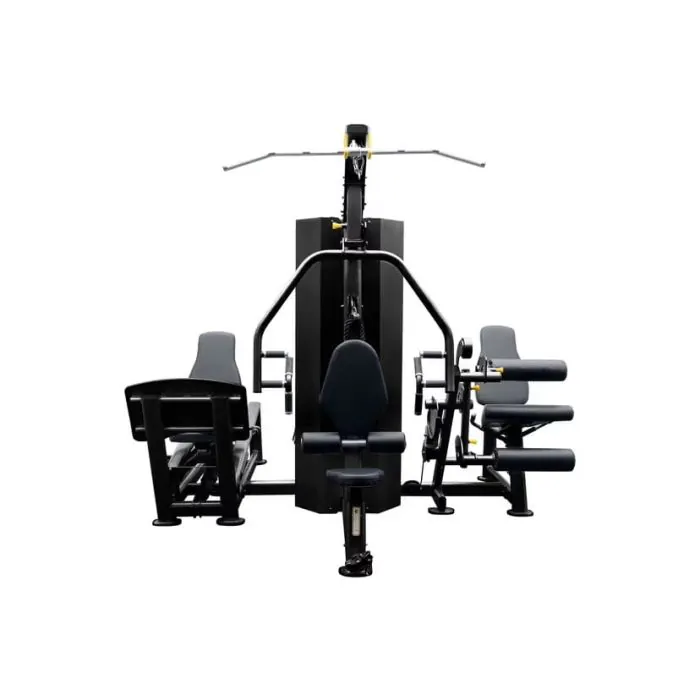

The BodyKore MTI4005 combines three dedicated exercise stations within one commercial multi-gym. The layout includes a lat pulldown and chest press station, a leg extension and leg curl station, and a seated leg press station.

Each station operates from its own selectorized weight stack, allowing resistance to be adjusted without loading or unloading weight plates. The station-based layout can support independent training areas for upper-body pressing, upper-body pulling, and lower-body exercise.

Lat Pulldown and Chest Press Station

The upper-body station combines a lat pulldown with a seated chest press. This gives users access to opposing pulling and pressing patterns from one training position.

Before use, adjust the seat, pads, and selector pin for the intended exercise. Confirm that the attachment and cable path are positioned correctly before beginning a set.

Leg Extension and Leg Curl Station

A separate lower-body station supports leg extension and leg curl exercises. The station allows users to train the front and back of the thighs without occupying the seated leg press.

User positioning, pad adjustment, and movement range should follow BodyKore’s current instructions. Adjustment points should be fully engaged before resistance is applied.

Seated Leg Press Station

The integrated seated leg press provides a dedicated compound lower-body station. Because it operates from its own selectorized stack, the leg press can be used independently from the other two exercise stations.

Confirm seat position, foot placement, and the selected resistance before beginning the exercise. Keep the surrounding entry and exit path clear.

Three Standard 220 lb. Weight Stacks

The standard MTI4005 configuration includes one 220 lb. selectorized stack for each exercise station. Selector pins allow the user to change resistance without handling loose plates.

The effective exercise resistance may differ from the labeled stack weight depending on the station’s cable ratio and movement geometry. Use the station markings and manufacturer instructions when selecting resistance.

Optional 340 lb. Weight-Stack Upgrades

BodyKore offers optional upgrades that increase a station’s stack from 220 lb. to 340 lb. These upgrades are sold separately and should be selected according to the resistance needs of each station.

Optional Weight Extenders

Optional Olympic weight extender pin accepts up to two 45 lb. 2-inch Olympic plates to increase resistance beyond the standard weight stack.

Key Product Specifications

• Brand: BodyKore
• Model / SKU / MPN: MTI4005
• Product type: Three-station selectorized multi-gym
• Station 1: Lat pulldown and chest press
• Station 2: Leg extension and leg curl
• Station 3: Seated leg press
• Standard weight stacks: Three 220 lb. selectorized stacks
• Optional stack configuration: 340 lb. upgrade available per compatible station
• Product dimensions: 104.5 in L x 96.2 in W x 86 in H
• Product weight: 2,108 lbs.
• Power required: None
• Environment: Indoor use
• Assembly: Required

What Is Included

• BodyKore MTI4005 three-station frame
• Lat pulldown and chest press station
• Leg extension and leg curl station
• Seated leg press station
• Three standard 220 lb. selectorized weight stacks
• Integrated seats, pads, handles and exercise components
• Manufacturer-supplied assembly hardware and documentation

Optional 340 lb. stack upgrades, weight extenders, flooring, inside delivery, and installation services are sold separately unless expressly listed on the order.

Room and Operating-Space Planning

The assembled machine measures approximately 104.5 inches long, 96.2 inches wide and 86 inches high. These dimensions describe the equipment frame and do not include all space needed for user entry, seat adjustments, cable movement, maintenance, and traffic around each station.

Plan separate access paths for all three exercise areas. Confirm ceiling height, nearby walls, doors, mirrors, columns, and other equipment before ordering.

Floor and Facility Planning

The product weight is approximately 2,108 lbs. before users, optional stack upgrades, or other accessories are added. Confirm that the installation surface and building structure are suitable for the completed machine.

Upper-level installations, raised floors, and uncertain concrete conditions should be reviewed by an appropriately qualified facility or structural professional. Browse gym flooring when planning the surrounding training area, while recognizing that flooring does not establish structural capacity.

Freight, Receiving, and Delivery Access

The MTI4005 is a large commercial strength system that requires freight and delivery-path planning. Confirm package count, pallet dimensions, total shipping weight, liftgate requirements, loading-dock access, and unloading responsibility before the order ships.

Measure exterior doors, interior doors, hallways, elevators, stairways, and turns leading to the final room. Standard curbside delivery should not be assumed to include movement into the building, room placement, debris removal, or assembly.

Assembly and Installation

Assembly is required. The frame, stacks, cables, pulleys, seats, and exercise components must be installed and checked according to BodyKore’s current instructions.

Because of the system’s size and weight, qualified installation is strongly recommended. Do not place the machine into service until all hardware is secure, cable routing is verified, selector pins engage correctly, and each station operates as documented.

Warranty Overview

The warranty includes lifetime coverage on the frame excluding coatings, 10 years on weight stacks, pulleys and pivot bearings, three years on other unspecified items, one year on upholstery, cables, springs and grips, and six months on accessories.

Coverage may depend on purchaser type, facility use, proper assembly, maintenance, and the current manufacturer terms.

Compare Other Multi-Gym Formats

Choose the MTI4005 when three dedicated selectorized stations and independent weight stacks are the priority. Buyers who need a Smith machine, free-weight rack, or adjustable pulley system can compare the BodyKore MX1162 Universal Trainer.

For a Smith machine paired with dual adjustable pulleys, compare the BodyKore MX1162-MF Smith/DAPS. For another all-in-one rack and pulley format, compare the BodyKore MX1161FX Dynamic Trainer.

Browse Home Gym Systems and Multi-Gyms for additional selectorized and multi-station configurations.

Ordering Assistance

For current pricing, availability, color selections, weight-stack upgrades, freight planning, or installation assistance, visit IRON COMPANY Customer Care or contact IRON COMPANY.
