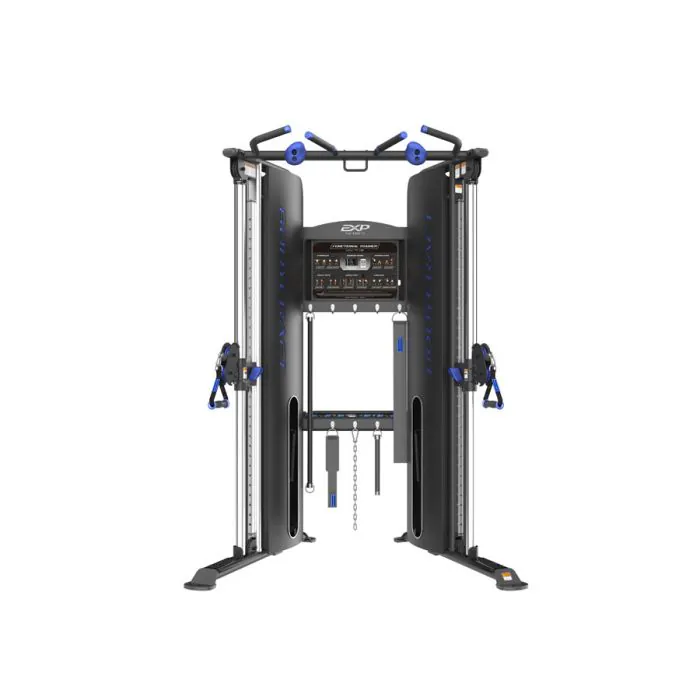

BodyCraft DFT Commercial Functional Trainer | BodyCraft (DFT)

BodyCraft DFT Commercial Functional Trainer | BodyCraft (DFT) - The BodyCraft DFT Functional Trainer combines precision, versatility, and durability to deliver a comprehensive strength training solution in a compact footprint. Featuring dual adjustable rotating pulleys with 32 laser-etched height positions, this trainer supports dynamic and functional exercises for users of all fitness levels. Its dual 200 lb. weight stacks (upgradeable to 250 lbs.) with a 2:1 weight ratio provide smooth and customizable resistance. The multi-grip chin-up bar offers wide, narrow, and rock climbing grips, along with a loop for suspension training. Built for durability, the trainer includes heavy-gauge oval tubing, laser-cut steel plates, and non-skid stabilizer feet. Its built-in accessory tray and storage hooks keep attachments such as contoured single handles, triceps rope, ankle cuff, sports stick, and long bar organized. Additional features include an intuitive cable column system, noise-dampening shrouds, and ultra-flexible nylon-coated aircraft cables rated at 2,000 lbs. Optional upgrades, like the Connect-22 Touchscreen Tablet, provide access to guided workouts and instructional videos. Backed by a commercial-grade warranty and finished with blue anodized accents, the BodyCraft DFT Functional Trainer is ideal for both home and commercial settings, offering unmatched performance and functionality. Available for purchase through GSA Advantage on GSA Contract 47QSMA22D08NN.

Features:

• Independent Adjustable Cable Columns: Stainless steel w/ 32 precision lasered height positions.
• Pulleys: Dual independent 200 degree rotational adjustable swivel pulleys.
• Pulley Travel: 61” vertical travel – 50″ width.
• Cable Travel: 77″ (using one side).
• Weight Stacks: Dual 200 lbs. weight stacks with magnetic selector pins w/ lanyard. 2:1 ratio. Optional upgrade to 250 lbs. each.
• Chin Bar: (Wide – classic – narrow) uses include, pull-ups, loop for suspension training, bands, rock grips.
• Accessories: Dual contoured single handles, sports stick, long bar, tricep rope, padded ankle cuff, chin/push-up assist strap, dual heavy-duty 21 link adjustment chain set, storage tray, exercise placard.
• Frame: Heavy-gauge oval tubing w/ laser cut steel plates.
• Shroud: Noise dampening & laser cut w/ blue logo.
• Stability: Non-skid extra wide stabilizer rubber feet w/ scratch plate for protection.
• Aesthetics: Blue aluminum pulleys & selector pins. All black hardware, blue adjustment knob, single handle accents & braided triceps rope. Chrome hooks.
• Paint Finish: Diamond gray and textured black electrostatic powder-coated finish.
• Pulleys: 3.5″ diameter, fiberglass impregnated nylon pulleys with sealed maintenance-free precision ball bearings.
• Cables: The most flexible nylon coated, 7 x 19 strand aircraft cable rated at over 2000 lbs. tensile strength.
• Guide Rods / Pulley Upright Tubes: Heavy duty chrome plated tubular steel. The pulley upright tubes are laser etched with a numeric index.

Optional Connect-22 Touchscreen Features:

• Open Platform: Use any app from the google play store with no subscription.
• Compatibility: Treadmills, ellipticals, bikes, functional trainers, and rowers.
• Wireless Mirroring: Compatible with iPhone and Android devices.
• App Connectivity: Connects to fitness apps with DualPro Sensor.
• Adjustable Viewing: 180-degree swivel & 90-degree tilt for optimal screen angles.

Specifications:

• Dimensions: 62.5″ W x 50″ D x 84.5″ H.
• Weight: 798 lbs. (200 lb. stacks) | 898 lbs. (250 lb. stacks)
• Pulley Travel: 61” vertical travel – 50″ width.
• Cable Travel: 77″ (using one side).
• Shipping: Truck (LTL, Curbside Delivery)

DFT with 2 x 200 lbs. Stacks:

• DFT Frame Box 1/3: 177 lbs.
• DFT Frame Box 2/3: 168 lbs.
• DFT Frame Box 2/3: 128 lbs.
• 6 Boxes of 15 lb. Weight Plates: 300 lbs.
• 2 Boxes of 10 lb. Weight Plates: 80 lbs.
• Total 11 boxes with a total weight (2 x 200 lbs. stacks) 853 lbs.*

DFT with 2 x 250 lbs. Stacks Uses Different Weight Set Up:

• 4 Boxes of 15 lb. weight plates: 300 lbs.
• 2 Boxes of 10 lb. weight plates: 100 lbs.
• 2 Boxes of 10 lb. weight plates: 80 lbs.
• Total 11 boxes with a total weight (2 x 250 lbs. stacks) 953 lbs.*
  * the totals do not include pallet weight of 80 lbs.

Optional Connect-22 Touchscreen Specifications:

• Processor: Rockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz.
• System Memory: 4GB LPDDR4.
• Storage Device: 32GB eMMC.
• Size/Resolution: 22” TFT LCD / 1920 x 1080.
• Touch Screen: Projected Capacitive Touch.
• USB Port: 1 x USB 3.0 Type A 1 x USB 3.0 Type C.
• Lan Port: 1 x RJ45 Giga LAN.
• Power Input:1 x DC in 12V/4.16A 2 pin.
• SD Slot: 1 x Micro SD Slot (SDHC 2.0 suport).
• Video Port: 1 x HDMI Output (1080p60 support).
• System: Android 9.0 – GMS Certified.
• Certifications: CE, FCC, LVD, UL, RoHS.

Warranty:

RESIDENTIAL-

• Frame: Lifetime
• Parts: 10 Years
• Wear Items: 1 Year
• Labor: 90 Days

COMMERCIAL –

• Frame: 10 Years
• Parts: 5 Years
• Wear Items: 1 Year
• Labor: 90 Days
