Cal Gym Selectorized Abdominal Crunch/Low Back Machine -- Tuff Stuff (CG-9510)

CG-9510 ProdID_5076
In stock
Cal Gym Selectorized Abdominal Crunch/Low Back Machine -- Tuff Stuff (CG-9510) is available to buy in increments of 1

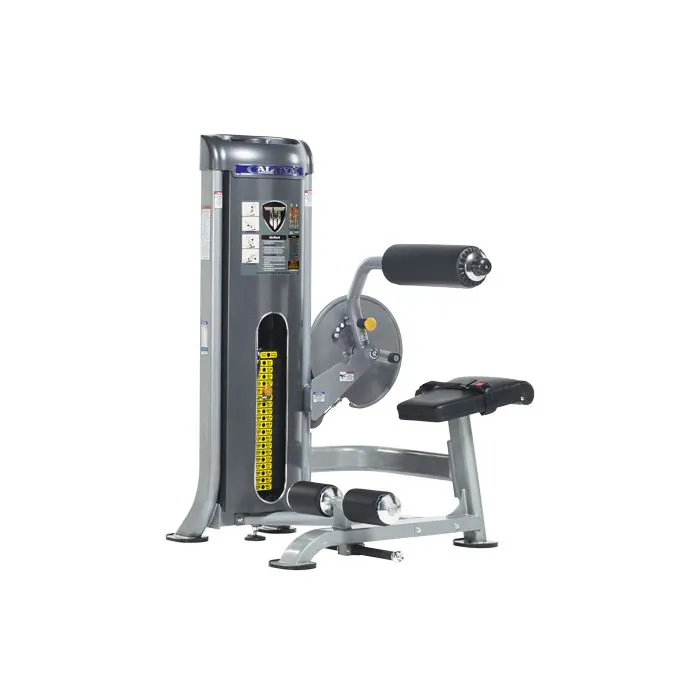

CalGym CG-9510 Selectorized Abdominal Crunch/Low Back Combo Machine - The CalGym CG-9510 by TuffStuff is a selectorized abdominal crunch machine and a low back extension that transitions between the two in just seconds via a pop-pin adjustment. When most people envision training the core of the body they instantly think about the abs sometimes forgetting about the posterior, or lower back. Balancing out the anterior and posterior of the core is essential in maintaining proper balance throughout the rest of the body. The CalGym CG-9510 offers a space efficient and cost effective option for total core toning and strengthening in hotel fitness centers, apartment building gyms, school weight rooms and commercial gyms.

The Quick-Set chest and back roller is generous in size and is comprised of dense padding which combined helps evenly distribute the resistance created by the weight stack. Adjust the roller pad forward for training lower back or forward for maximum abdominal crunch range of motion. The oversized seat pad accommodates users of all sizes and includes a built-in seat belt to keep users from lifting off during crunches or back extensions. Adding additional support and stability is the rubber encased foot brace and foot/ankle roller to keep the legs stationary during each rep. Providing the resistance is a fully shrouded 200 lb. weight stack that offers easy selector pin adjustments. Construction and fabrication of the CG-9510 falls in line with many of the top-of-the-line competitors by including powder coated 2 x 4 x 11 gauge oval tubing, 2,200 lb. aircraft quality cables, nylon pulley wheels with heavy-duty sealed bearings, dense seat padding with 3/4 thick plywood backing and solid steel polished guide rods.

Have a question about this item or need a quick custom quote? Call an CalGym strength equipment specialist today at 1-888-758-7527. You can also email


  • Quick-set torso pad easily adjusts for both abdominal and back exercises.
  • Seat belt enhances user comfort, support and firm hold-down during exercises.
  • Oversized seat accommodates a wide variety of user sizes.
  • Rubber coated foot brace and foot rolls keep user in proper alignment.
  • 200 lbs. steel weight stack.­­


  • Dimensions: 41" L x 45" W x 59" H
  • Shipping Weight: 515 lbs.
  • Standard Colors: Platinum Sparkle frame with Charcoal accents / Black upholstery

TuffStuff Fitness CalGym Series Standard Specifications and Features:

  • Heavy duty 2 x 4 11-gauge oval steel frames with a combination of 2 round tubing.
  • Sealed 2 roller bearings and 1 diameter solid steel axle encased in machined housing on all primary pivot points.
  • 1 solid steel axles with 1 bronze oil lite bushings on all secondary pivot points.
  • 4-1/2 and 3-1/2 diameter fiberglass reinforced nylon pulleys with sealed bearings enclosed in protective steel covers.
  • High density EMR Urethane foam padding with double-stitched upholstery (black) secured to 3/4 plywood backing.
  • Powder coat finish in Platinum Sparkle with Charcoal accents (custom color available for additional charge).
  • 3/16" USA-Made/Certified EXERFLEX PRO high performance cable.
  • 3/4 precision ground, hard chrome finish, solid steel guide rods.
  • Biomechanically designed 7-gauge steel cams provide proper resistance curves throughout full range of motion.
  • Thermoplastic rubber handgrips secured with aluminum end caps for durability and improved feel.
  • Steel weight stack enclosures with decorative built-in storage compartment cover.
  • Protective rubber stabilizer feet with anchoring holes provided on all machines.


Custom Color Options upcharges apply - Call to order

Custom Frame Color Options
Wrinkle Black
Ebony Chrome
Sky White

Custom Upholstery Color Options

Lite Gray
China Green
Candy Apple
Deep Clay
New Burgundy
Purple Iris
Royal Blue

Tuff Stuff Fitness warrants to the original purchaser that Tuff Stuff Fitness equipment will be free from defects in material and workmanship. All warranty periods begin to run from the date of delivery to the original purchaser. The warranty and remedies set forth herein are conditioned upon proper storage installation, use and maintenance and conformance with any recommendations of Tuff Stuff Fitness. This warranty does not cover products not manufactured by Tuff Stuff Fitness or products which are altered without the express written consent of Tuff Stuff Fitness.

This warranty as specified:
Commercial Warranty (Not recommended for membership based or dues paying facilities.):

  • Frames, welds, cams and weight plates - 10 Years
  • Pivot Bearings, Pulleys, Bushings, and Guide Rods - 2 Years
  • Linear Bearings, and Pull-Pin Components - 1 Year
  • Upholstery, Cables, Finish and Rubber Grips - 6 Months
  • ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser.

Shipping Included
Shipping cost included within the lower 48 states only

Ships via one of our various freight carriers on a wooden pallet. This delivery is considered a curbside delivery only and will be delivered to a location at your address that is acceptable for a tractor trailer at the drivers discretion. Customers are required to be home at the time of delivery to sign the delivery receipt. On most deliveries, customers will receive a 24-hour notification call and lift gate service.

Territory restrictions apply. Not available in all markets.
