Safe-T-Grip™ Raised Diamond Plate Floor Runner - Light Duty 1/8" -- Patriot Sports Flooring (DP-ROLL-1/8)

Available in 4' wide x 25', 50' and 75' lengths
Badge Badge

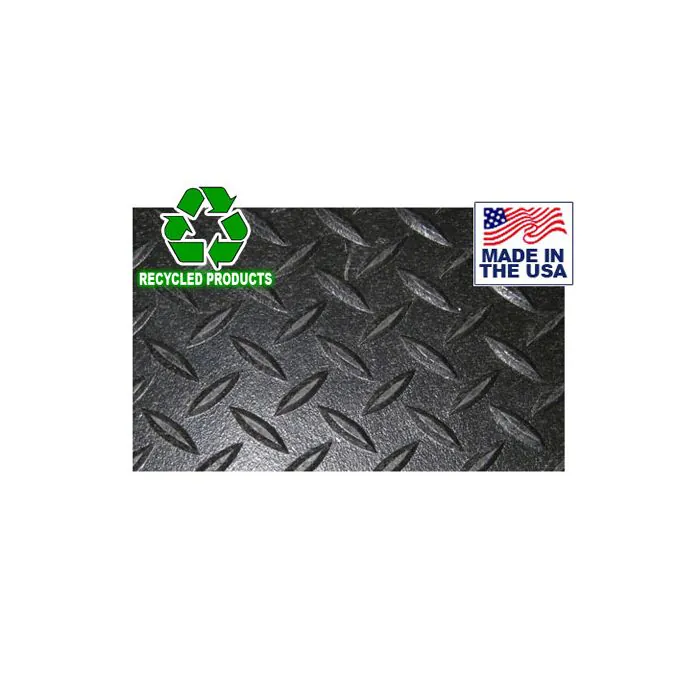

Safe-T-Grip™ Raised Diamond Plate Floor Runner - Light Duty 1/8" - Our diamond plate rubber rolls are not your typical smooth finish gym flooring. They offer a Safe-T-Grip™ Raised Diamond Plate pattern that is aesthetically pleasing and guaranteed to give any facility a unique and industrial feel. The diamond pattern also increases slip resistance if you are using it as a non-slip floor runner in high traffic areas such as walkways or behind counters.

IRON COMPANY® USA Made Diamond Plate Rubber Flooring Rolls offer a uniquely formulated 50/50 combination of recycled rubber and plastic. While most recycled rolled rubber is made from 100% crumb rubber, our diamond plate material also includes plastic. Plastic gives the finish a smooth, non-porous appearance while greatly increasing the tensile strength.

What applications are suitable for 1/8" thick rubber? While this thickness would not be suitable for heavy weight drop that is common in commercial gyms, there are many uses that most people are not aware of. Some gym owners have reported adhering it to the walls of their gyms so as to create a protective barrier from weight plates that are left leaning up against walls especially near squat racks and other strength equipment. It can be custom cut and installed over wood or concrete sub-floors in indoor traffic areas like retail display areas, behind counters, walkways, etc. Some customers get really creative and cut it into floor mats for cars or truck bed mats and tool box drawer liners. The thickness of this material makes it very easy to work with and cut with a razor knife therefore the applications it can be used for are almost endless. An installation consultation is recommended after purchase.

Need help configuring your room dimensions or have questions on how to install it properly? Call an IRON COMPANY® flooring expert today at 1-888-758-7527 or email


  • Roll Width: 4'
  • Roll Thickness: 1/8"
  • Roll Length Choices: 25' (100 sq. ft.), 50' (200 sq. ft.) and 75' (300 sq. ft.) long.
  • Roll Weight: 50 lbs (25'), 100 lbs (50'), 150 lbs (75')
  • NOTE: 75' rolls are made to order with 3-4 week production lead time prior to shipping


  • Weight: 0.5 lbs per square foot
  • Hardness: Shore A-65
  • Tensile Strength: Machine direction = 620 PSI. Transverse direction = 780 PSI
  • Tear Strength: Machine direction = 168 PSI. Transverse direction = 187 PSI

Fluid Resistance Rating:

  • Alcohol (Isopropyl) - Excellent
  • Anti Freeze - Good
  • Grease - Good
  • Water - Excellent
  • Vegetable Oil - Fair
  • Hydraulic Oil - Fair
  • Gasoline - Very Poor
  • Diesel Fuel - Poor
  • Motor Oil - Fair

flooring in car
Great for multiple industrial and recreational applications as well as standard flooring

Shipping Included
Shipping cost included within the lower 48 states only

25' and 50' Rolls: Ships via UPS

75' Roll: Ships via one of our various freight carriers on a wooden pallet. This delivery is considered a curbside delivery only and will be delivered to a location at your address that is acceptable for a tractor trailer at the drivers discretion. Customers are required to be home at the time of delivery to sign the delivery receipt and help offload the individual packages from the tail end of the truck. On most deliveries, customers will receive a 24-hour notification before the delivery is made.
