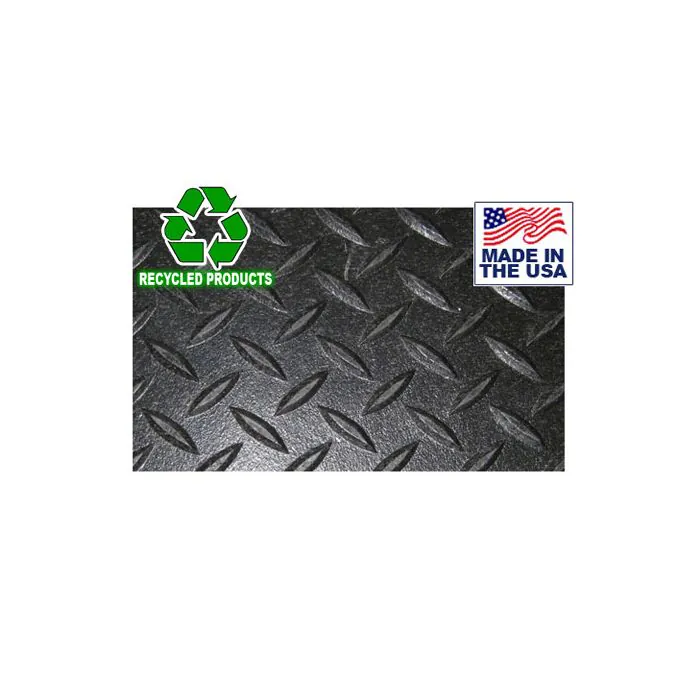

Safe-T-Grip™ Non-Slip Diamond Plate Rolled Rubber - Light Duty 1/4" -- Patriot Sports Flooring (DP-ROLL-1/4)

Available in 4' wide x 25', 50' and 75' lengths
Badge Badge

Safe-T-Grip™ Non-Slip Diamond Plate Rolled Rubber - Light Duty 1/4" - Safe-T-Grip™ Rolled Rubber is a high tensile strength protective floor covering made from durable Tire/Plast material. By nature, rolled rubber is slip-resistant and well suited for insuring proper footing in wet or dry conditions. As a testament to its slip resistant characteristics, it is commonly used to cover and protect outdoor decks, walkways and even boat decks. Add a raised diamond plate pattern to the surface of your rolled rubber and its already superior slip resistance and aesthetics are enhanced even further. Our 1/4" thick rolls of diamond plate rubber are suitable for select applications in residential and commercial locations including high traffic areas in gyms, industrial buildings, warehouses and other locations. It can be adhered to wood and concrete sub-floors with either flooring tape (carpet tape) or a liquid, trowel on rubber adhesive like our MasterWeld 941. For less permanent installs, use the flooring tape.

What is Tire/Plast? IRON COMPANY® American Made Diamond Plate Rubber Flooring Rolls are manufactured from a 50/50 combination of recycled rubber and plastic. Most recycled gym flooring products are made from 100% crumb rubber that is bonded together by urethane. Our diamond plate material also incorporates plastic which gives the finish a smooth, non-porous appearance while greatly increasing the tensile strength. The plastic increases the wear life of the product and makes it impervious to spilled liquids such as water, oil and grease.

What applications are suitable for 1/4" thick rubber? 1/4" light commercial rolled rubber works well in areas that experience weight drop from lighter dumbbells and barbells. Weight machines that are plate loaded or that have weight stacks can be placed on top without cutting, tearing or damaging the surface. Use in garage gyms and training studios. An installation consultation is recommended after purchase.

Need help configuring your room dimensions or have questions on how to install it properly? Call an IRON COMPANY® flooring expert today at 1-888-758-7527 or email


  • Roll Width: 4'
  • Roll Thickness: 1/4"
  • Roll Length Choices: 25' (100 sq. ft.), 50' (200 sq. ft.) and 75' (300 sq. ft.) long.
  • Roll Weight: 115 lbs (25'), 230 lbs (50'), 345 lbs (75')
  • NOTE: 75' rolls are made to order with 3-4 week production lead time prior to shipping


  • Weight: 1.15 lbs per square foot
  • Hardness: Shore A-65
  • Tensile Strength: Machine direction = 620 PSI. Transverse direction = 780 PSI
  • Tear Strength: Machine direction = 168 PSI. Transverse direction = 187 PSI

Fluid Resistance Rating:

  • Alcohol (Isopropyl) - Excellent
  • Anti Freeze - Good
  • Grease - Good
  • Water - Excellent
  • Vegetable Oil - Fair
  • Hydraulic Oil - Fair
  • Gasoline - Very Poor
  • Diesel Fuel - Poor
  • Motor Oil - Fair

flooring in car
Great for multiple industrial and recreational applications as well as standard flooring

Shipping Included
Shipping cost included within the lower 48 states only

25' Roll: Ships via UPS

50' and 75' Rolls: Ships via one of our various freight carriers on a wooden pallet. This delivery is considered a curbside delivery only and will be delivered to a location at your address that is acceptable for a tractor trailer at the drivers discretion. Customers are required to be home at the time of delivery to sign the delivery receipt. On most deliveries, customers will receive a 24-hour notification call and lift gate service.
