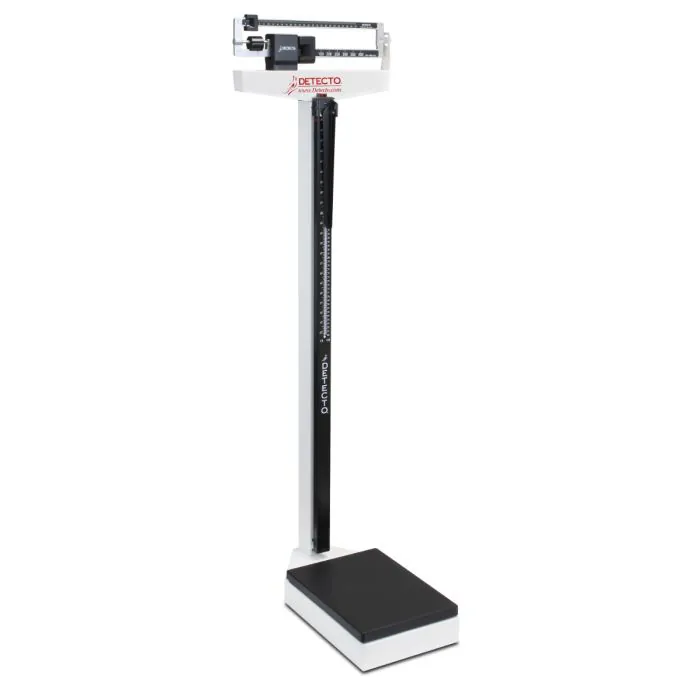

Detecto 439 Mechanical Physician Scale with Height Rod
The Detecto 439 is a stationary, eye-level mechanical physician scale designed for weight measurement in pounds. It has a 450 lb. capacity with 4 oz graduations and includes a height rod for measuring standing height from 24 to 84 inches. The mechanical weigh-beam system requires no batteries, electrical outlet, or electronic setup.
Pound-Reading Eye-Level Weigh Beam
Model 439 uses a pound-only die-cast weigh beam that can be read from either side. The eye-level position keeps the beam and sliding poises within convenient viewing range for the operator.
To determine weight, the operator moves the large and small poises until the beam pointer balances within the trig loop. The scale should be zero balanced before use according to Detecto’s instructions.
Integrated Height Rod
The included height rod measures standing height from 24 to 84 inches, or 60 to 212 centimeters. The rod is marked in 0.125-inch and 0.1-centimeter graduations.
Combining the scale and height rod allows weight and standing height to be recorded at one stationary measurement station.
Stationary Configuration Without Wheels or Handpost
The Detecto 439 is the stationary height-rod model in this portion of the eye-level physician-scale family. Transport wheels and a handpost are not included.
Choose model 439 when a fixed placement is preferred. Buyers who need built-in wheels for controlled relocation should compare the corresponding wheeled model rather than assuming every eye-level scale includes them.
Steel Platform and Powder-Coated Construction
The scale uses mild-steel construction with a powder-coated finish. Its platform measures approximately 14.75 by 10.75 inches and includes a removable platform cover for routine cleaning.
The complete scale measures approximately 58.25 inches high and 17.5 inches wide. Confirm the final placement area provides enough room for the user to step onto and off the platform while the operator accesses the beam and height rod.
Key Features and Specifications
- Model: Detecto 439
- Scale type: Eye-level mechanical weigh-beam physician scale
- Measurement unit: Pounds
- Weight capacity: 450 lbs.
- Weight graduation: 4 oz
- Height rod: Included
- Height range: 24–84 in / 60–212 cm
- Height graduation: 0.125 in / 0.1 cm
- Transport wheels: Not included
- Handpost: Not included
- Platform size: 14.75 x 10.75 in / 37.5 x 27.3 cm
- Overall width: 17.5 in / 44.5 cm
- Overall height: 58.25 in / 148 cm
- Construction: Mild steel with powder-coated finish
- Power requirement: None
Placement and Operating Considerations
Place the scale on a hard, level, stable surface or another surface permitted by Detecto’s current manual. Before each weighing session, move both poises to zero and confirm that the beam pointer is centered.
Detecto instructs attendants to assist patients when stepping onto and off the platform and not to leave a patient unattended while on the scale. Follow the current owner’s manual for assembly, balancing, height measurement, operation, cleaning, and troubleshooting.
What Is Included
- Detecto 439 mechanical physician scale
- Pound-reading eye-level weigh beam
- Integrated height rod
- Steel platform with removable platform cover
- Manufacturer-supplied assembly hardware and documentation
Transport wheels, a handpost and configuration-specific features associated with other Detecto physician-scale models are not included with model 439.
