Plate Loaded Leg Extension / Leg Curl Combo -- Legend Fitness (3135)
Plate Loaded
Fully Welded Frame

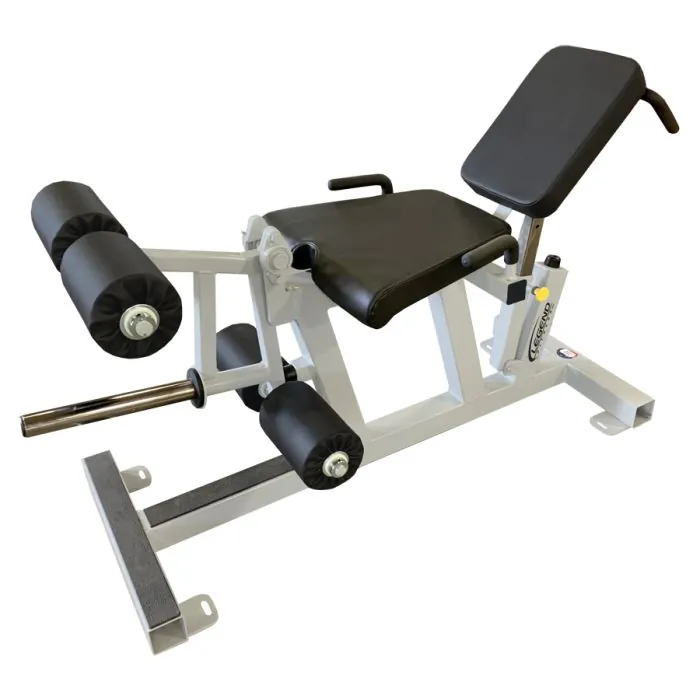

Legend Fitness 3135 Plate Loaded Leg Extension / Leg Curl Combo - The 3135 Plate Loaded Leg Extension / Leg Curl Machine by Legend Fitness is like having two leg training machines in one for maximum space and cost efficiency. It excels at developing the sought after teardrop in the quadriceps as well as the sometimes neglected hamstring muscles. At first glance, youll immediately notice the overbuilt commercial grade frame that is fabricated using 3" x 3" x 11-gauge steel which is fully mig-welded for maximum stability and durability. To put that into perspective, this is the same size and gauge steel tubing used in some of the strongest squat racks and power cages on the planet. Next is the reliable foam padding used for the leg rollers, seat and adjustable back rest. We use the word reliable because only the highest quality rebond foam is used which offers the maximum amount of support and doesnt allow even the strongest, heaviest trainees to sink through during training. Changing between leg extensions and hamstring curls is easy thanks to the pop-pin adjustment knob and two pairs of stability handles are integrated for added stability during each lift. To ensure the smoothest and most durable operation, Legend includes two industrial strength pillow block bearings at the pivot point. And finally, one of the favorite features of the 3135, especially among serious lifters, is the chromed weight peg. Rather than a selectorized weight stack, lifters can pile on the weight plates to provide maximum payload for maximum results.
Purchase a Legend Fitness Leg Extension / Leg Curl Combo Machine on GSA contract - All plate loaded strength equipment by Legend Fitness can be purchased from Ironcompany on GSA Contract GS-07F-0104M and CMAS Contract 4-12-78-0066A.
Have a question about this item or need a quick custom quote? Call an Ironcompany.com Legend Strength Equipment specialist today at 1-888-758-7527. You can also email quotes@ironcompany.com
Legend Fitness 3135 Leg Exension/Curl Features and Specs:
- Dimensions: 66.5" L x 25" W x 38.5" H
- Frame Construction: Heavy 11 gauge 3" x 3" steel construction designed using CAD software to minimalize the use of bolts and fasteners
- Frame Fabrication: Fully welded frame for maximum stability and longevity
- Adjustable Seat: Seat backrest adjusts to an upright position for leg extensions and then drops to a decline angle that promotes proper body alignment for hamstring curls
- Bearings: Industrial grade pillow block bearings provide the smoothest movement and longest lasting durability
- Weight Peg: Chromed weight peg allows plenty of plate loading for even the strongest lifters. Use with Olympic weight plates with 2" center hole only. Weight plates NOT included
- Leg Rollers: Fully uphostered leg rollers utilize thick, dense foam padding that offers maximum support and wont deform over time
- Handles: Foam rubber stability handles offer a firm grip for additional stability and leverage when seated or lying down
- Wearguards: ABS plastic wearguards are located on top of the frame directly underneath the weight peg for frame finish protection from falling weight plates
- Padding: 2" thick rebond foam with 8 lb. per cubic foot density
- Naugahyde: Heavy-duty 32oz top-stitched upholstery is stain resistant and easy to clean
- Finish: Chip resistant powder coat
- Color Availability: See drop down menu or color chart below
- Uses: For increasing lean muscle mass and strength in the upper body through front and behind the head barbell presses
- Shipping Configuration (palletized): 64" L x 46" W x 48" H | 265 lbs. (Freight Shipping Class 250)
- Proudly Made In The USA
Legend Frame Colors |
![]() |
Legend Fitness offers an awesome variety of upholstery colors. You may select from the top selling colors or any of the custom colors at no extra charge. If you select a custom color, please choose "Custom Color" from the Upholstery Color Option pulldown menu above and note your color choice on the order notes.
Legend Upholstery Standard Color Chart |
||||||||
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
![]() ![]() ![]() |
||||
American Beauty |
Royal Blue |
Black |
Claret |
Forest Green |
Legend Fitness Upholstery Custom Color Chart
Click to Enlarge
Please Note: Depending on the type of monitor you use, actual upholstery colors can vary slightly from how they appear on your monitor.
We offer BIG BULK DISCOUNTS on Legend Fitness Equipment Purchases! Please make sure that you email or call for pricing!
Shipping NOT Included
Due to the size and/or weight of this product, this item does not include shipping. If you place an order for this item the shipping cost will be emailed to you within 24 hours and will be an additional charge. We do our best to assure you the lowest possible shipping cost available. If you would like to obtain a quote for this product or multiple products before you order please email us a shipping quote request and include the product(s) Manufacturer, Name, and Part Number along with the ship to address.
