Modular Series Unit #3 | TriActive USA (MOD3)

TriActive USA Modular Series Unit #3 MOD3

Overview

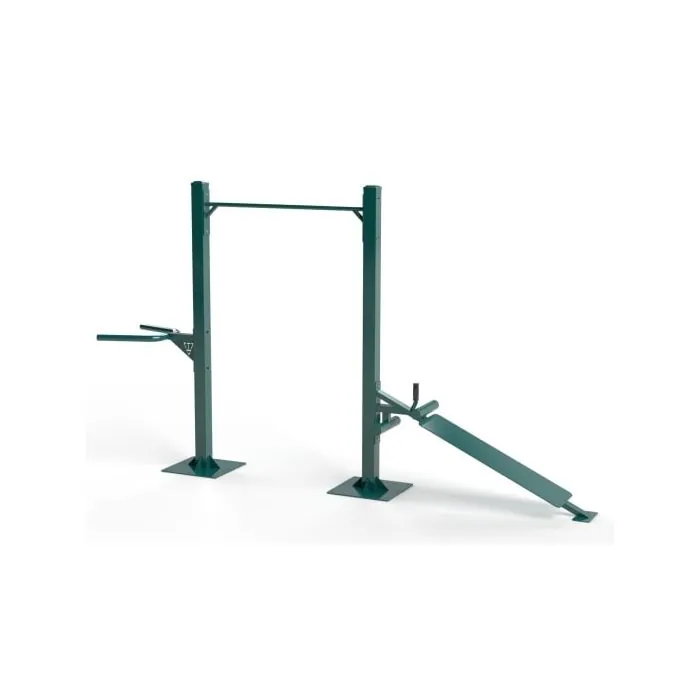

The TriActive USA Modular Series Unit #3 is a commercial-grade outdoor fitness station designed to train multiple users simultaneously. This unit combines a pull-up bar, dip bars, and an incline sit-up bench, delivering a well-rounded upper body and core workout suitable for parks, schools, military bases, and outdoor fitness trails.

Engineered for continual outdoor use, the MOD3 features heavy-duty tubing, thick-gauge steel, and a weather-resistant powder coat finish that withstands sun, moisture, and heavy traffic in public environments.

• Use Rating: Full Commercial
• Category: Outdoor Fitness Equipment
• Why it matters: Supports multi-user training while withstanding outdoor weather and high foot traffic.

Key Benefits

• Three training stations in one — dips, pull-ups, incline bench.
• Ideal for outdoor fitness zones, parks, recreation centers, campuses, and hotels.
• Zero cables, hydraulics, or moving parts — minimal maintenance required.
• Commercial steel tubing ensures long lifecycle in public spaces.
• Weather-resistant coating protects against corrosion and UV exposure.
• Designed for bodyweight training suitable for all fitness levels.
• Supports users up to 330 lbs.

Description

The Modular Series Unit #3 is a fully integrated outdoor training station offering dip bars, a pull-up bar, and a stable incline sit-up bench. Built using thick American-standard steel tubing and precision welding, this unit is engineered to deliver years of safe, reliable use in parks and commercial outdoor environments.

All surfaces are coated using a multi-stage powder coating process, including iron phosphate pretreatment and final TGIC powder application, ensuring long-term performance in varied climates.

FAQs

Is this unit suitable for public parks?

Yes, it is engineered specifically for high-traffic public use and weather exposure.

Does it require professional installation?

Installation by qualified personnel is recommended for proper anchoring and safety.

What surfaces can it be mounted to?

Concrete pads are recommended for optimal stability and long-term performance.

Is maintenance required?

Aside from routine inspection and cleaning, the unit requires minimal maintenance.

Can multiple users exercise at once?

Yes — the station supports up to three simultaneous users.

Does it come assembled?

No, it ships partially assembled and requires on-site installation.

Ready to add this outdoor modular fitness station to your facility? Request a quote or contact our team for assistance. Contact IRON COMPANY.

Support

Questions? Call 888-758-7527 or visit Customer Support.

Features:

• 3-in-1 station supports simultaneous multi-user training.
• 4”x4” 1/4” wall square tubing and 11-gauge carbon steel for superior durability.
• No exposed cables, hydraulics, or plastic seating.
• Pull-up station, dip bars, and incline bench built into one modular footprint.
• 6–8 mil powder coating thickness with 1000-hour salt spray resistance.
• Designed for a maximum user weight of 330 lbs.
• Available in Green or Blue commercial outdoor finish.

Specifications:

Assembled Dimensions & Weight

• Dimensions (L×W×H): 157” × 80” × 92” (398.8 cm × 203.2 cm × 233.7 cm)
• Unit Weight: 445 lbs. (201.8 kg)
• User Weight Capacity: 330 lbs. (149.7 kg)

Construction & Finish

• Materials & Finish: 4×4 square tubing 1/4” wall, 11ga steel, 1⁄4” flat bar, carbon steel sheet.
• Hardware/Adjustments: Fixed-position, welded outdoor fitness structure.
• Compliance/Standards: Engineered for outdoor public fitness installations.

Warranty:

• Limited 10-year warranty on steel posts, welds, bars and other steel parts on all units that are fully welded, with no moving parts.

Does NOT Include Shipping:

Due to the size and/or weight of this product, this item does not include shipping.

• Shipping Quote: To obtain a shipping quote prior to ordering, please Contact A Sales Rep or email [email protected].
• Online Orders: Customers placing an online order will be contacted shortly after the order is received for approval of additional shipping costs to your area. Please note, we will not finalize and ship your product without prior approval of any additional shipping costs that were not included in your original order.
• Freight: Freight deliveries are considered "curbside" only and will be delivered on a wooden pallet to a location at your address suitable for a tractor trailer at the drivers discretion. Your delivery will include a 24-hour notification to schedule delivery for the next business day and lift gate service only. There will be an upcharge for any additional delivery services (i.e. inside delivery). Customers are required to be available at the time of delivery to inspect the shipment, make note of any freight damage or shortages, and sign the delivery receipt including notes of any damage or shortages.
