RageTurf Rally Interlocking Turf Tiles | Ecore (RAGETURF-RALLY-TILE) - RageTurf Rally Turf Tiles are 23" x 46" x 24mm thick interlocking artificial turf tiles that combine a 12mm Polyethylene turf surface layer and 12mm Vulcanized composition base layer. These two layers are permanently bonded together using itsTRU, Ecore's proprietary technology that fusion-bonds each layer for maximum durability and performance. RageTurf Rally tiles do not require adhesive when installing making them a great alternative to rolled turf and are tough enough to withstand weighted sled training or any type of functional training in your CrossFit box and sports training facility. 25-tile minimum order.
RageTurf Rally Interlocking Turf Tiles | Ecore (RAGETURF-RALLY-TILE) - RageTurf Rally Turf Tiles are 23" x 46" x 24mm thick interlocking artificial turf tiles that combine a 12mm Polyethylene turf surface layer and 12mm Vulcanized composition base layer. These two layers are permanently bonded together using itsTRU, Ecore's proprietary technology that fusion-bonds each layer for maximum durability and performance. RageTurf Rally tiles do not require adhesive when installing making them a great alternative to rolled turf and are tough enough to withstand weighted sled training or any type of functional training in your CrossFit box and sports training facility.

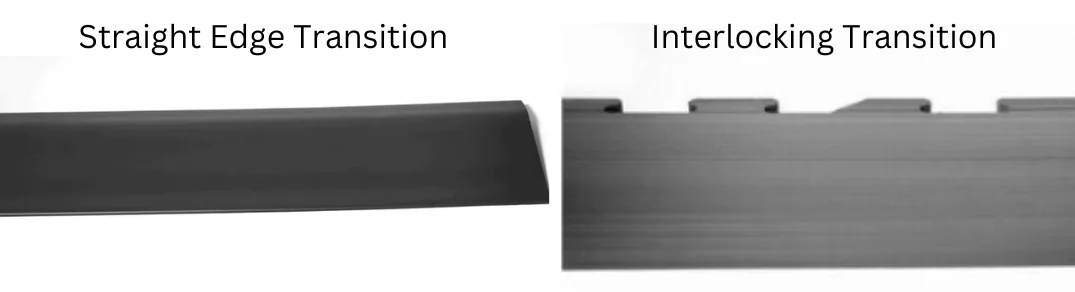

Optional Transition Strips:
When an inlaid turf installation is not possible, more than likely you will have an area of your facility that transitions down from turf to another surface such as rubber flooring, wood, etc.. Ecore transition strips provide a clean look for your facility and help eliminate tripping hazards. Choose from interlocking and straight transition strips.
- Interlocking Turf Transition: Interlocking transition for use with RageTurf Rally interlocking turf tile. Great for room openings or when area mat installations are required. Size available: 46"L x 12"W x 3/4"H. Does not require adhesive. Pricing is per strip.
- Straight Edge Turf Transition: Ecore's Straight Edge Transitions are made for use with RageTurf Rally and Performance Rally. For interlocking turf tiles, straight transitions are available for a more finished look after trimming tabs from tile edge. Available in one size: 48"L x 4" W x 3/4"H. Adhesive required. Pricing is per strip.

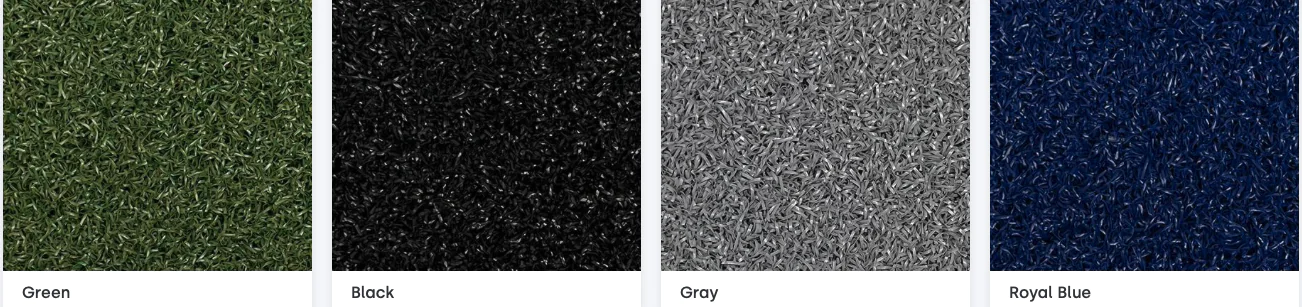

RageTurf Rally Interlocking Turf Tile Color Samples
RageTurf Rally Features:
- Available Colors: Green, Black, Gray, Royal Blue.
- Tile Type: Interlocking.
- Total Recycled Material Content (post-consumer): 73%
- Installation: Easy to install indoors with or without double sided tape. No infill needed.
- Uses: Can be used for sled training in CrossFit boxes and performance facilities.
- Acoustics: Helps to manage impact energy and reduce noise.
- Performance: Durable and slip resistant.
- Optional Interlocking Turf Transition Reducer - Black: Optional 46"L x 12" W x 3/4"H interlocks into turf tiles for clean transition to other floor surfaces.
- Optional Straight Turf Transition Reducer - Black: Optional 48"L x 4" W x 3/4"H. Use only when transitioning to another flooring surface where interlocking tabs have been trimmed off forming a straight edge for a flush fit. Adhesive is required.
- Minimum Order: 25-tile minimum.
Installation:
-
Areas to receive flooring should be weather tight and maintained at a minimum uniform temperature of 65°F (18°C) for 48 hours before, during, and after the installation.
-
Install Interlocking Tiles over wood or concrete subfloors or firmly adhered resilient flooring, such as vinyl, linoleum, laminate, ceramic tile, and wood.
-
Surface should be smooth to prevent irregularities, roughness, or other defects from transferring through to the new flooring.
-
For a finished look, trim the interlocking tabs from the mat using a sharp utility knife and a metal straight edge.
Cleaning - Cleaners that can be used without special precautions:
- A warm, mild solution of granular household detergent or any low sudsing detergent for fine fabrics. Use approximately one teaspoon to one pint of water. This will handle most waterborne stains including: Coffee, ketchup, mustard, fruit juices, cola, milk, cocoa, vegetable juices, tea, ice cream, butter, glue, blood, urine, dye, latex paint.
- A three (3) percent solution of ammonia in water may be used in lieu of household detergent for more stubborn stains.
- Do not use cleaners that contain chlorine bleaches or caustic cleaners (pH above 9) or highly acidic cleanses (pH below 5). Use only neutral cleaners, such as Ecore E- Cleaner.
- Rinse area thoroughly with clean warm water to remove any traces of soap or ammonia.
- Blot up or wet vacuum excessive liquid.
RageTurf Rally Specs:
Ecore RageTurf Rally Interlocking Turf Tiles with 12mm Vulcanized Composition Rubber Base Layer are made from a formulation of high-quality, post-consumer Vulcanized Composition Rubber granules encapsulated in a wear and water-resistant elastomeric network, fusion bonded to a polyethylene turf Surface Layer.
- Tile Type: Interlocking.
- Tile Dimension: Ecore turf pile height of 12mm, fusion bonded to 12mm Vulcanized Composition Rubber Base Layer. Dimensions 24mm (0.94") thick x 23" (.58m) wide x 46" (1.17m) long.
- Sq. Ft. Per Tile: 7.35 sq. ft.
- Surface Layer: 12mm Polyethylene Turf.
- itsTRU Fusion Bond: Proprietary itsTRU™ technology fusion-bonds the layers.
- Base Layer: 12mm Vulcanized Composition Rubber base layer.
- Tile Standard Tolerances: Tile thickness: +- 0.6mm; L & W: 1/8”.
- Slip Resistance / Coef. of Friction: (ASTM D1335) 0.87 (dry).

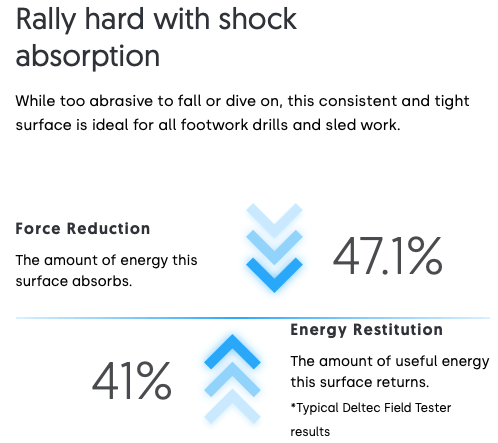

- Impact/Energy Abatement: 47.1%
- Energy Restitution: 41%
- Vertical Deformation: 4.9mm.
- g-max: 84
- Flammability: (ASTM D2859) Pass.
- VOC Compliant: (ASTM D5116) Pass.
- Interlock Loss: 0.00 feet.
- Weight Per Tile: 16.17 lbs.
- Installation: Free floating or double-sided tape.
- Sled Training: Approved.
- Leed Points: Yes
- Use: Indoor use only.
- Country Of Origin: USA
- Minimum Order: 25-tile minimum.
RageTurf Rally Limited Warranty:
- 5-Years against manufacturer defects to the original purchaser.
All Ecore RageTurf Rally Interlocking Tiles are guaranteed to be free from manufacturing defects on both material and workmanship. If such a defect is discovered, the customer must notify Ecore either through the contracting installer, distributor, or directly. If found to be defective under normal non-abusive conditions, the sole remedy against the seller will be the replacement or repair of the defective goods, or credit may be issued not exceeding the selling price of the defective goods. These warranties only apply to the original purchaser.
Please see the Ecore Warranty Guide for length specifics.
Ecore RageTurf Rally Interlocking Tile warranty shall not cover dissatisfaction due to improper installation, normal wear, damage from improper maintenance or usage, or general misuse, including and without limitation: burns, cuts, tears, scratches, scuffs, damage from rolling loads, damage from cleaning products not recommended by Ecore, slight shade variations or shade variations due to exposure to direct sunlight, or differences in color between samples or photographs and actual flooring.
