Raptor P-3100 Tricep Extension | ProMaxima (P-3100)

ProMaxima Raptor P-3100 Tricep Extension | ProMaxima (P-3100)

Overview

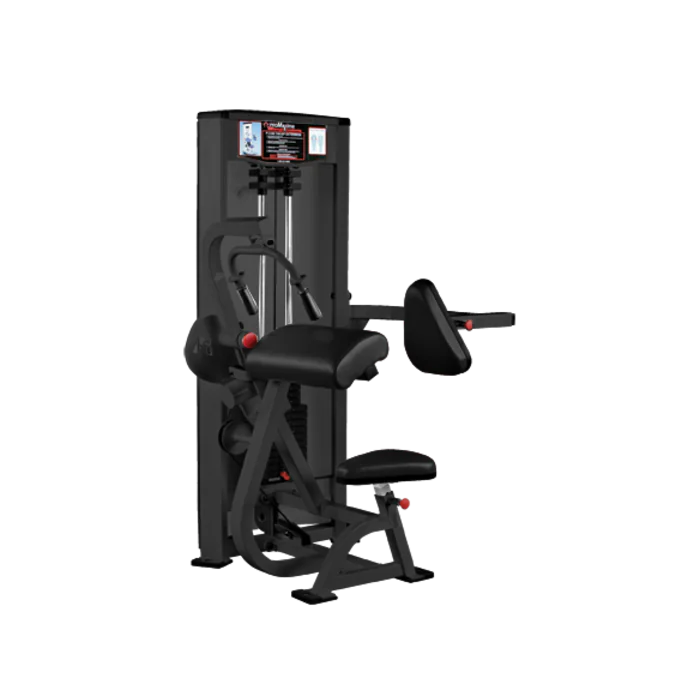

The ProMaxima Raptor P-3100 Tricep Extension is a selectorized seated tricep extension machine engineered for precise, joint-friendly tricep isolation in home gyms, training studios, and full commercial facilities. A 150 lb. weight stack, self-adjusting compensating arm, and counterbalanced drive arm combine to deliver smooth, consistent resistance for users of many experience levels.

Rated for residential, light commercial, and full commercial use, the Raptor P-3100 tricep extension machine uses 11-gauge structural steel, military-spec aircraft cable, and radial bearings to provide long-term durability and predictable biomechanics in high-traffic environments.

• Use Rating: Residential / Light Commercial / Full Commercial
• Category: Selectorized seated tricep extension machine
• Why it matters: Provides guided, adjustable tricep isolation with commercial-grade construction in a compact selectorized station.

Key Benefits

• Focused tricep isolation: The seated tricep extension pattern emphasizes the triceps while minimizing shoulder and back involvement, helping build upper-arm strength and definition.
• Selectorized 150 lb. weight stack: A 150 lb. stack offers a wide range of resistance options for beginners through intermediate and advanced users without the need for plate loading.
• Self-adjusting compensating arm: The arm automatically adapts to changes in arm angle, helping maintain consistent resistance and supporting proper biomechanics through the full range of motion.
• Counterbalanced drive arm: The counterbalance reduces the starting load and helps users start the movement smoothly, which is especially helpful for deconditioned or rehab-focused users.
• Adjustable, comfortable setup: A five-position seat with bright red pull knobs, ABS protective dishes, and seamless marine-grade upholstery help users lock into a comfortable, stable position for each set.
• Commercial durability: High Stress 3/16" ASTM A-500 structural steel tubing, 4,800 lb. test aircraft cable, and solid-steel plates are built to withstand daily use in busy commercial gyms.
• Low-maintenance operation: Full-length stack shrouds, oil-impregnated cable, and sealed ball-bearing pulleys reduce maintenance requirements and help ensure consistent performance over time.
• Easy to learn and coach: Clear instructional placards and intuitive adjustments make the P-3100 seated tricep extension machine approachable for new members and simple for staff to supervise.

Description

The Raptor P-3100 tricep extension machine offers a guided path for building stronger, more defined triceps. Users sit on the padded seat, rest their upper arms on the support pad, grip the handles, and extend at the elbow against the selectorized resistance. This controlled motion helps users focus on the triceps without worrying about balance or stabilizing a free-weight load.

Adjustable positions on the P-3100 are designed to accommodate a variety of body types while maintaining correct biomechanical function. The five-position seat adjusts via heavy-duty spring-loaded colored pull-pin knobs so users can align their elbows with the cam’s axis of rotation. A self-adjusting compensating arm and counterbalanced drive arm further support smooth, joint-friendly movement patterns.

The selectorized weight system features solid-steel plates machined precisely within an ounce of their stated weight. A tethered magnetic selector pin passes through the entire stack to set the resistance quickly and securely. The system allows 5 lb weight increments, enabling gradual progression, and the 150 lb. stack is accessible from the seated position for ease of use. Full-length outer weight stack shields and inner safety guards help protect users and moving components.

Like other ProMaxima Raptor selectorized units, the P-3100 uses a cable system built from 1/4" thick, 4,800 lb. test military-spec galvanized aircraft cable finished with a tough 3/16" nylon coating. Manual cable tension adjusters on the machine help maintain proper cable tension over time. Cables route over 4" and 6" solid fiberglass-reinforced pulley wheels with deep cable grooves and oil-dipped double-sealed racer ball bearings, sealed against moisture and dust for long service life.

The frame structure consists of High Stress 3/16" ASTM A-500 grade B structural steel tubing (11-gauge) in 2" x 4" and 2" x 3" sections on the uprights, with 2" x 2" tubing used for cross members and benches. All welds are ground down and stress tested to ensure strength and a clean, professional appearance. Guide rods are 1" CCRO ANSI 1045 solid steel, hard chrome-plated with 75,000 psi tensile strength for precise, low-friction weight stack travel.

For comfort and longevity, the Raptor P-3100 tricep extension machine uses heavy-duty 40 oz commercial marine Naugahyde upholstery, approximately 85% mildew-resistant, over high-density closed-cell foam reinforced by thick plywood backing. ABS protective dishes around the seat, back, and arm pads help protect surfaces from wear, and natural rubber handgrips add comfort and traction. Urethane foam grades HR-125 and HR-150 are used in high-compression areas to retain shape under repeated use.

Each machine is finished with a custom color powder coat using a three-stage pre-paint process. Steel is pellet-blasted to purify the surface, then preheated before magnetic powder is applied and baked for a hardened finish. The design exceeds applicable ASTM requirements for strength equipment, aligning with the expectations of commercial facilities, government buyers, and institutional users.

FAQs

What muscles does the ProMaxima Raptor P-3100 tricep extension work?

The Raptor P-3100 seated tricep extension machine primarily targets the triceps while also engaging the shoulders and forearms to stabilize the movement.

How heavy is the weight stack on the P-3100 tricep extension machine?

The ProMaxima P-3100 is equipped with a 150 lb. selectorized weight stack made from solid-steel plates. Resistance can be adjusted in 5 lb. increments using the tethered magnetic selector pin.

Is the Raptor P-3100 suitable for full commercial gyms?

Yes. The P-3100 tricep extension machine is rated for residential, light commercial, and full commercial use and is built from 11-gauge ASTM A-500 structural steel, aircraft-grade cable, and commercial marine upholstery that exceeds applicable ASTM strength equipment requirements.

How does the machine adjust to different user sizes?

The unit offers a five-position seat adjustment with heavy-duty spring-loaded pull knobs, along with a self-adjusting compensating arm and counterbalanced drive arm. These features help users of various heights align their elbows correctly with the axis of rotation for efficient tricep extensions.

What maintenance is recommended for the Raptor P-3100 seated tricep extension machine?

Recommended maintenance includes inspecting cables and pulleys for wear, checking cable tension, confirming smooth operation of selector pins and pull knobs, tightening hardware as needed, and wiping down upholstery and frame surfaces. Worn parts should be replaced with factory-approved components.

Can beginners safely use the ProMaxima Raptor P-3100?

Yes, when given basic instruction on setup and technique. The guided movement path, counterbalanced arm, adjustable seating, and instructional placard make the machine suitable for beginners starting with light loads and controlled repetitions.

Is the ProMaxima Raptor P-3100 warranty transferable?

No. The warranty for the ProMaxima Raptor P-3100 tricep extension machine is non-transferable and applies only to the original purchaser. Subsequent owners are not covered under the factory warranty.
