Overview

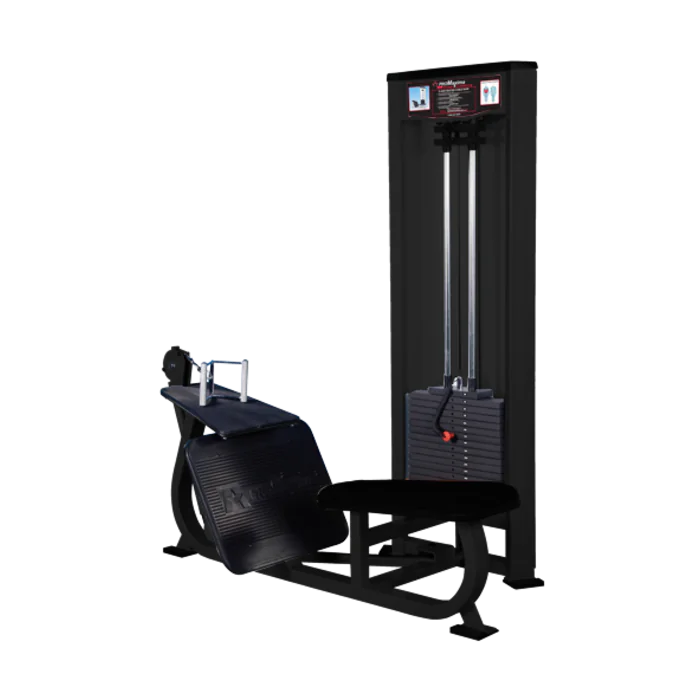

The ProMaxima Raptor P-4200 is a selectorized seated cable row machine designed for reliable back training in home, studio, and full commercial gym environments. With a 300 lb. weight stack, large non-skid foot platform, and dual grip rowing handle, it delivers smooth, repeatable cable row performance for users of many strength levels.

Rated for residential, light commercial, and full commercial use, the Raptor P-4200 seated row machine combines heavy-gauge steel construction, military-spec aircraft cable, and ergonomic adjustments so coaches, members, and home users can perform seated row machine exercises safely and efficiently day after day.

• Use Rating: Residential / Light Commercial / Full Commercial
• Category: Selectorized seated cable row machine
• Why it matters: Provides focused back training with commercial durability and easy adjustments in a compact selectorized row station.

Key Benefits

• Targeted back development: The seated cable row pattern emphasizes the lats, rhomboids, mid-back, and rear shoulders to improve posture, pulling strength, and overall upper-body balance.
• Selectorized 300 lb. stack: A heavy 300 lb. weight stack gives both beginners and advanced lifters room to progress, while the selectorized design keeps weight changes fast between sets and users.
• Consistent biomechanics for all users: Adjustable components and a large wear-resistant foot platform help users find a repeatable, joint-friendly pulling position, rep after rep.
• Commercial-grade durability: 11-gauge ASTM A-500 structural steel, hard chrome guide rods, and double-sealed bearing pulleys are engineered to handle busy facilities with minimal downtime.
• User-friendly operation: Bright red pull knobs, a red axis of rotation indicator, and a clear instructional color placard make the machine approachable for new exercisers and easy to coach.
• Comfortable, stable seating: Seamless marine-grade Naugahyde upholstery over high-density foam and ABS protective dishes keeps users comfortable and the pads looking clean longer.
• Fine load progression: The system allows 5 lb increment changes so users can increase resistance gradually, which is helpful for joint-sensitive or rehab-focused programs.
• Low-maintenance cable system: Military-spec, oil-impregnated aircraft cable and sealed bearings reduce friction, noise, and maintenance needs over the life of the machine.

Description

The Raptor P-4200 seated cable row machine is built for facilities that want a dedicated, selectorized seated row station with the strength and feel of premium commercial equipment. Users sit on the padded seat, place their feet on the large non-skid foot platform, grasp the dual grip rowing handle, and pull toward the torso while maintaining a neutral spine and controlled motion.

Like other ProMaxima Raptor selectorized units, the P-4200 uses adjustable positions to accommodate a wide range of users and help ensure proper biomechanical function. Heavy-duty spring-loaded colored pull-pin knobs make seat adjustments quick and secure, and the red axis-of-rotation indicator aids in aligning the user correctly for smooth movement and reduced joint stress.

The selectorized weight stack features solid steel plates machined precisely within an ounce of the stated weight. A tethered magnetic selector pin runs through the entire stack, so users can set their resistance quickly without worrying about misplaced pins. The weight system allows 5 lb. increments, and the stack is accessible from the seated position and fully enclosed in form-fitted shields for safety and a clean appearance.

The cable path is driven by 1/4" thick, 4,800 lb. test military-spec galvanized aircraft cable with a 3/16" tough nylon coating. Manual tension adjusters on the machine keep cables properly tensioned over time. Cable routing passes over 4" and 6" solid fiberglass-reinforced pulley wheels with deep cable grooves and oil-dipped, double-sealed ball bearings that are moisture- and dust-resistant, contributing to quiet, smooth operation.

The frame structure uses High Stress 3/16" ASTM A-500 grade B structural steel tubing in 2" x 4" and 2" x 3" sizes for the main uprights and 2" x 2" tubing for cross members and benches. Guide rods are 1" CCRO ANSI 1045 solid steel, hard chrome plated with 75,000 psi tensile strength for precise, low-friction stack travel. All welds are ground down and stress tested for safety and visual quality.

Upholstery consists of heavy-duty 40 oz commercial marine Naugahyde, approximately 85% mildew resistant, over high-density closed cell foam backed with thick plywood for stable support. Urethane foam grades HR-125 and HR-150 are used in high-compression areas for comfort and durability. ABS seat protective dishes, natural rubber handgrips, and a wear-resistant foot platform round out a design built to withstand repeated use.

Custom color powder coat paint is applied using a three-stage pre-paint process, including pellet blasting to purify the steel and a preheat stage before applying the magnetic powder. The finish is then baked for a long-lasting, hardened surface. The entire design exceeds applicable ASTM requirements for strength equipment, offering peace of mind to facility owners and users alike.

FAQs

What muscles does the ProMaxima Raptor P-4200 seated cable row work?

The seated cable row primarily targets the latissimus dorsi, rhomboids, mid and lower trapezius, rear deltoids, and biceps. It also engages the core and spinal erectors for postural support when performed with proper technique.

How heavy is the weight stack on the P-4200 seated row machine?

The Raptor P-4200 includes a 300 lb. selectorized weight stack made from solid steel plates. The system allows 5 lb. increment adjustments using the tethered magnetic selector pin for precise progression.

Is the Raptor P-4200 suitable for full commercial gyms?

Yes. The P-4200 is rated for residential, light commercial, and full commercial use. It uses 11-gauge structural steel, hard chrome guide rods, commercial marine upholstery, and components that exceed applicable ASTM strength equipment requirements.

How does the machine adjust to different user sizes?

Key positions on the P-4200 adjust via heavy-duty spring-loaded pull-pin knobs, allowing users to find a comfortable seat position and reach to the dual grip handle. The large non-skid foot platform supports various leg lengths and stance widths.

What maintenance is recommended for the seated cable row machine?

Periodic maintenance includes checking cable tension, inspecting cables and pulleys for wear, confirming all selector and adjustment pins function correctly, and wiping down upholstery and frame surfaces. Replace worn parts with OEM components to maintain safety and performance.

Can beginners use the Raptor P-4200 safely?

Yes, provided they receive basic instruction on setup and technique. The machine’s instructional placard, adjustable positions, and controlled movement path help beginners learn seated row machine exercises safely. Light starting loads and small 5 lb. increments also support gradual progress.
