Raptor P-4300 Combo Hi Lat Pull/Seated Row | ProMaxima (P-4300)

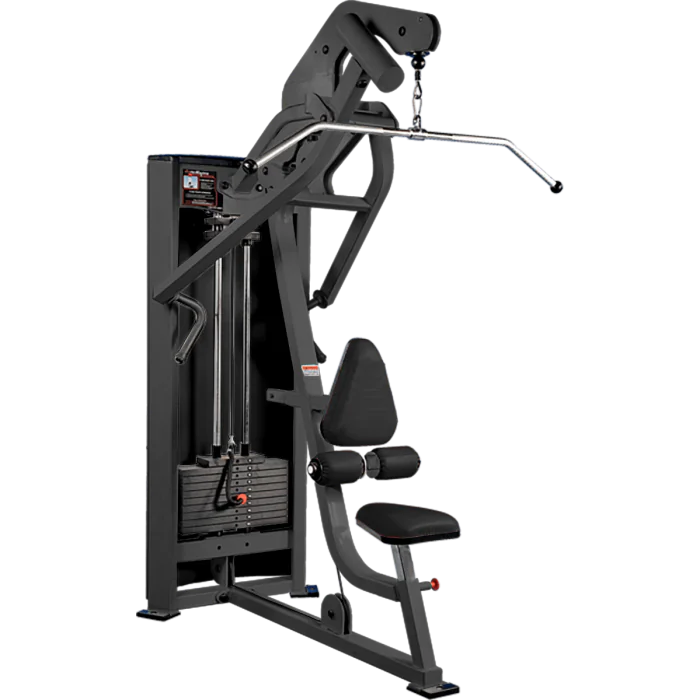

ProMaxima Raptor P-4300 Combo Hi Lat Pull/Seated Row (P-4300)

Overview

The ProMaxima Raptor P-4300 is a selectorized hi lat pull/seated row machine that combines two essential back exercises in one compact footprint. This Raptor P-4300 lat pulldown seated row combo machine is ideal for facilities that need commercial durability and smooth performance in a space-efficient design.

Rated for residential, light commercial, and full commercial use, the ProMaxima Raptor P-4300 lat pulldown/row machine uses a 225 lb. selectorized weight stack, precision guide rods, and a military-spec cable system to deliver consistent resistance and repeatable biomechanics for users of all sizes.

• Use Rating: Residential / Light Commercial / Full Commercial
• Category: Selectorized lat pulldown and seated row machine
• Why it matters: Combines two high-value back movements in one heavy-duty, low-maintenance unit suitable for home gyms, studios, and busy commercial facilities.

Key Benefits

• Two machines in one: Perform both lat pulldown and seated row exercises from a single selectorized station to train the lats, mid-back, and rear shoulders efficiently.
• Selectorized convenience: A 225 lb. weight stack with tethered magnetic selector pin and 5 lb. increment options makes load changes fast and precise between users or sets.
• Adjusts to almost any user: Five-position seat height and six-position chest pad adjustment help create proper joint alignment and safe biomechanics for a wide range of body sizes.
• Commercial-grade durability: Heavy 11-gauge ASTM A-500 structural steel, hard chrome guide rods, and marine-grade upholstery are engineered for high-traffic training environments.
• Smooth, consistent resistance: 1/4" nylon-coated, oil-impregnated aircraft cable and sealed ball-bearing pulleys deliver quiet, predictable movement throughout the full range of motion.
• User-friendly design: Full-length weight stack shrouds, color instructional placards, and bright red adjustment knobs make the machine intuitive and approachable for new users.
• Accessible for beginners: Lower starting weight and counter-balanced arms where needed help deconditioned or rehabilitation-focused users start safely and progress over time.
• Low long-term upkeep: Overbuilt frames, precisely machined plates, and quality components reduce downtime and maintenance costs over the life of the unit.

Description

The ProMaxima Raptor P-4300 Combo Hi Lat Pull/Seated Row is built for facilities that want reliable, selectorized lat pull/row training without compromise. Users can move from hi lat pull-downs to low cable rows simply by switching body position and attachment, making it a true hi lat pull/seated row machine for complete posterior-chain and upper-back development.

Adjustable positions on all critical points allow the machine to accommodate a wide range of users while maintaining correct biomechanical function. The five-position seat adjustment and six-position chest pad adjustment are controlled with heavy-duty, spring-loaded colored pull-pin knobs that are easy to see and operate. A red axis-of-rotation indicator helps users and staff quickly align the joints with the machine’s pivot for safer loading.

The selectorized weight system uses solid steel plates machined within an ounce of the stated weight. A tethered magnetic selector pin runs through the full stack, while an integrated system allows 5 lb. incremental jumps for fine progression in lat pulldown row and seated pull variations. The weight stack is accessible from a seated position and fully enclosed with full-length shrouds to help protect users and moving parts.

The cable system is built around 1/4" thick, 4,800 lb. test, military-spec galvanized aircraft cable, oil-impregnated and finished with a tough 3/16" nylon coating. Manual tension adjusters on every machine keep the cable path tight and consistent. Pulleys use solid fiberglass-reinforced bodies with deep cable grooves and oil-dipped, double-sealed ball bearings for long service life and minimal maintenance.

For comfort and longevity, ProMaxima uses heavy-duty 40 oz commercial marine Naugahyde upholstery that’s highly resistant to mildew. High-density closed-cell foam over thick plywood backing provides firm, stable support under heavy loads. The frame is built from high-stress 3/16" ASTM A-500 grade B structural steel tubing, with 2" x 4" and 2" x 3" tubing on the primary structure and 2" x 2" tubing on cross members and benches. All welds are ground smooth and stress tested for long-term safety.

Custom color powder coat paint is applied using a three-stage process. Steel is first pellet-blasted to clean and prep the surface, then preheated before the magnetic powder is applied and baked to a hardened finish. The result is a durable, attractive surface that stands up to daily use and cleaning. The design exceeds applicable ASTM strength equipment requirements.

Whether you’re programming hi lat pull/seated row machine exercises for athletes, general population clients, or corporate wellness settings, the Raptor P-4300 provides a stable, predictable platform that makes coaching and progression straightforward.

FAQs

What exercises can I perform on the ProMaxima Raptor P-4300?

The Raptor P-4300 lat pulldown/row machine supports traditional wide-grip and close-grip lat pulldowns, seated cable rows, and a variety of neutral-grip, single-arm, and high-to-low back exercises when paired with different cable attachments.

How heavy is the weight stack on this machine?

The ProMaxima P-4300 includes a 225 lb. selectorized weight stack with a tethered magnetic pin and built-in 5 lb. increment capability for precise load adjustments.

Is the Raptor P-4300 suitable for full commercial gyms?

Yes. The unit is rated for residential, light commercial, and full commercial use and is built with 11-gauge structural steel, hard chrome guide rods, commercial marine upholstery, and components that exceed applicable ASTM requirements.

How does the machine adjust to fit different-sized users?

The Raptor P-4300 offers a five-position seat and six-position chest pad, both adjusted with heavy-duty spring-loaded pull pins. Red axis-of-rotation indicators and clear instructional placards help users set up properly for each exercise.

What maintenance is recommended?

Inspect cables and pulleys regularly, verify proper cable tension, check that selector pins and pull pins are functioning correctly, and wipe down upholstery and frame surfaces after use. Replace worn components with OEM parts to maintain safety and performance.
