Raptor P-5100 Leg Extension w/ROM | ProMaxima (P-5100)

ProMaxima Raptor P-5100 Leg Extension w/ROM | ProMaxima (P-5100)

Overview

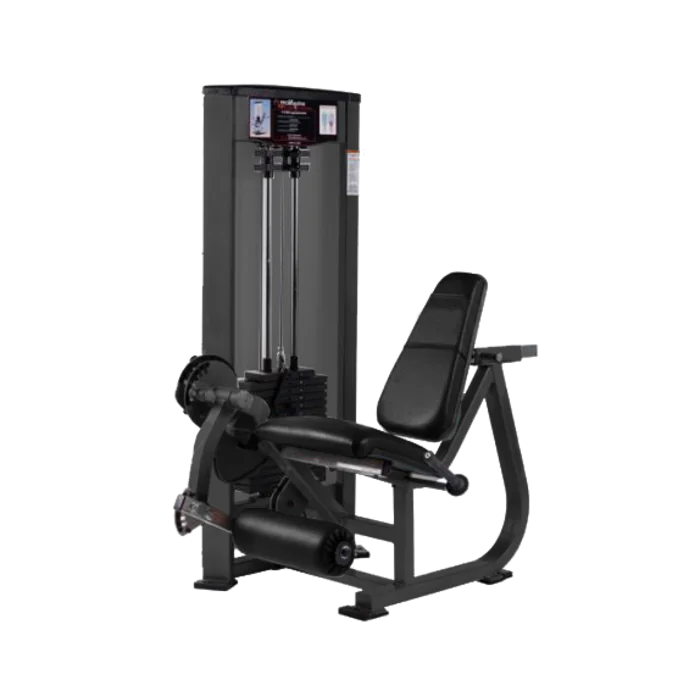

The ProMaxima Raptor P-5100 Leg Extension w/ROM is a selectorized leg extension machine designed to build quadriceps strength with controlled, adjustable range of motion. With a 300 lb. weight stack, oversized footplate, and low-profile sliding seat, this ProMaxima leg extension machine provides stable, joint-friendly leg extension machine exercises for residential, light commercial, and full commercial gyms.

Rated for all three use categories, the Raptor P-5100 combines heavy-gauge steel construction, aircraft-grade cable, and a fully shrouded weight stack to deliver consistent performance in busy training environments.

• Use Rating: Residential / Light Commercial / Full Commercial
• Category: Selectorized leg extension machine
• Why it matters: Offers controlled, adjustable leg extension ROM so facilities can program quad training for users of different sizes, abilities, and mobility levels.

Key Benefits

• Targeted quad isolation: The seated leg extension pattern focuses on the quadriceps, helping build knee extension strength for sports, daily activities, and lower-body training programs.
• Selectorized 300 lb. stack: A 300 lb. solid-steel weight stack provides ample resistance range for beginners through advanced lifters without handling plates.
• Adjustable range of motion: ROM adjustments allow coaches and users to fine-tune start and stop angles, supporting progressive loading and accommodating individual knee comfort.
• Easy entry/exit: Low seat profile, non-obstructive base frame, and oversized footplate with EZ grip handle make getting into and out of the machine straightforward.
• Consistent biomechanics: The machine’s cam design, radial bearings, and sliding seat help keep the knee joint aligned and the resistance smooth throughout each repetition.
• Commercial-grade durability: High Stress 3/16" ASTM A-500 structural steel tubing, 4,800 lb. test cable, and solid-steel plates are engineered for high-traffic commercial use.
• Comfortable, stable support: Seamless marine-grade Naugahyde upholstery and ABS seat and back dishes give users a firm, supportive base for heavy leg extension machine work.
• Low maintenance: Full-length stack shrouds, oil-impregnated cable, and sealed ball-bearing pulleys help minimize wear and service downtime.

Description

The ProMaxima Raptor P-5100 leg extension machine is built for facilities that need reliable, adjustable leg extension ROM control in a selectorized format. Users sit on the low-profile seat, secure their legs behind the padded roller, and extend at the knee against the selectorized stack. ROM adjustments help ensure the machine starts and ends where each user’s knees and hips feel strongest and safest.

Adjustable positions across the machine accommodate a wide range of users while supporting correct biomechanical function. A five-position sliding seat adjustment with heavy-duty spring-loaded colored pull-pin knobs allows users to set proper hip and knee alignment relative to the cam and pivot. The oversized footplate with EZ grip handle makes positioning the lower leg pad easier and helps users get into and out of the machine safely.

The selectorized weight system features solid-steel plates machined precisely within an ounce of their labeled weight. A tethered magnetic selector pin extends through the 300 lb. weight stack, making weight changes quick and secure. The weight system allows 5 lb. increments with add-on plates where equipped, giving users fine control over progression. The stack is fully accessible from the seated position and protected by inner safety shields and full-length outer shrouds.

Like other ProMaxima Raptor selectorized machines, the P-5100 uses a cable system built from 1/4" thick, 4,800 lb. test military-spec galvanized aircraft cable finished with a tough 3/16" nylon coating. Manual cable tension adjusters on the machine make it easier to keep the cable system properly tuned. Cables route through 4" and 6" solid fiberglass-reinforced pulley wheels with 1/2" cable grooves and oil-dipped double-sealed racer ball bearings, sealed against moisture and dust.

The frame structure consists of High Stress 3/16" ASTM A-500 grade B structural steel tubing (11-gauge) in 2" x 4" and 2" x 3" sections on uprights, with 2" x 2" tubing used on cross members and benches. Guide rods are 1" CCRO ANSI 1045 solid steel, hard chrome-plated with 75,000 psi tensile strength for precise, low-friction weight stack travel. All welds are ground down and stress tested to meet long-term safety and appearance standards.

Comfort and durability are supported by heavy-duty 40 oz commercial marine Naugahyde upholstery, roughly 85% mildew resistant, over high-density closed-cell foam reinforced by thick plywood backing. ABS seat and back protective dishes help shield padding and frame surfaces from wear. Urethane foam grades HR-125 and HR-150 are used in high-compression areas to maintain pad shape under repeated load. Natural rubber handgrips provide a secure grip during set-up and movement.

Each Raptor P-5100 leg extension machine is finished with a custom color powder coat applied after a three-stage pre-paint process that includes pellet blasting to purify the steel, preheating, and baking magnetic powder for a hardened finish. The design exceeds applicable ASTM requirements for strength equipment, aligning with the specifications expected in commercial training facilities and institutional environments.

FAQs

What muscles does the ProMaxima Raptor P-5100 leg extension machine train?

The P-5100 leg extension focuses on the quadriceps muscles at the front of the thigh, helping improve knee extension strength used in walking, running, jumping, and many lower-body lifts.

How heavy is the weight stack on the ProMaxima P-5100 leg extension with ROM?

This ProMaxima leg extension machine includes a 300 lb. selectorized weight stack made from solid-steel plates. Users can adjust resistance in small increments using the tethered magnetic selector pin.

What does ROM adjustment mean on the Raptor P-5100?

ROM (range of motion) adjustment allows users or staff to set starting and ending angles for the leg extension movement. This can help tailor the exercise to individual comfort, mobility, and programming needs.

Is the Raptor P-5100 suitable for full commercial gyms?

Yes. The ProMaxima Raptor P-5100 leg extension is rated for residential, light commercial, and full commercial use and is built from 11-gauge ASTM A-500 structural steel, aircraft-grade cable, and commercial upholstery that exceed applicable ASTM strength equipment requirements.

How does the machine adjust to fit different user sizes?

The machine provides a five-position sliding seat adjustment using heavy-duty pull pins, along with a low seat profile and oversized footplate. These features help align the knee joint correctly with the axis of rotation and make it easier for users of varying heights to set up.

What maintenance is recommended for the Raptor P-5100 leg extension machine?

Recommended maintenance includes inspecting cables and pulleys for wear, checking cable tension, verifying that selector pins and adjustment mechanisms operate smoothly, tightening hardware as needed, and wiping down upholstery and frame surfaces. Worn parts should be replaced with factory-approved components.

Can beginners safely use the ProMaxima Raptor P-5100?

Yes, when they receive basic coaching on seat and ROM adjustment and exercise technique. The guided movement path, low entry profile, and instructional placard help beginners perform leg extension machine exercises with controlled form and light starting loads.

Is the warranty on the ProMaxima Raptor P-5100 transferable?

No. The warranty for the ProMaxima Raptor P-5100 leg extension with ROM is non-transferable and applies only to the original purchaser. Subsequent owners are not covered under the factory warranty.

Ready to add the ProMaxima Raptor P-5100 Leg Extension w/ROM to your facility or home gym? Add to cart or request a quote. Need help comparing selectorized leg extension machines? Contact IRON COMPANY.
