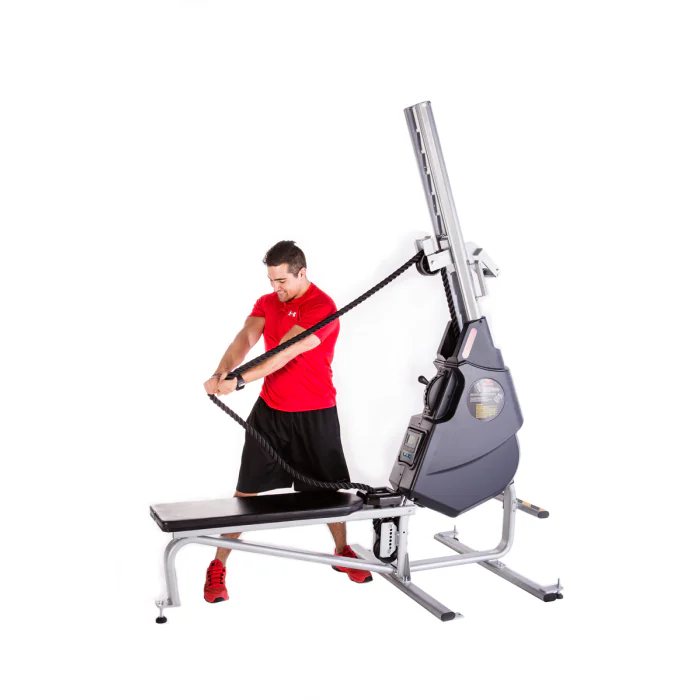

VMX DYNAMIC ROPE TRAINING MACHINE w/BENCH | MARPO KINETICS (VMX)

VMX Dynamic Rope Training Machine w/Bench - MARPO KINETICS (VMX) – The VMX Dynamic Rope Trainer by Marpo Kinetics is similar to the VLT Compact Rope Trainer with the exception of having a permanently attached exercise bench and adjustable pulley. Just squeeze the handle to adjust the pulley carriage to transform the VMX rope machine into a vertical rope climbing simulator or a horizontal rope pulling machine. Three rope exercise modes include vertical, diagonal and horizontal allow dozens of push/pull exercises that target entire body strength, cardio, stretching and are very effective in rehabilitation. The VMX rope workout machine will simultaneously target the upper and lower body. Isolate individual muscle groups like the abs, shoulders and arms similar to weight training. Change out your exercises on the fly by simply standing, sitting or changing your grip. One of the biggest benefits of rope training on the VMX is its dynamic resistance mechanism that constantly adjusts to your pulling power along the entire length of your stroke. This lowers stress on the joints reducing potential for injury while maximizing workout efficiency.

Features:

• Multi-mode adjustment for vertical, diagonal, horizontal and reverse pull movement that can be used for push and pull exercises for a total body workout.
• Easy adjust sliding carriage lowers or raises the top pulley allowing for increased versatility for strength training, cardio training and functional training.
• Permanently attached bench for added exercise versatility.
• Accomodates low ceiling height limitations.
• Simulates rope climbing exercises at a resistance level anyone can manage.
• Use low resistance for cardio training and heavy resistance for strength training.
• Isokinetic braking system offers more resistance the harder you pull.
• Helps increase sustained strength and cardio endurance.
• Built for commercial use.
• Optional Marpo Education Training course available. Learn the functionality of the rope trainer, benefits it provides and the proper movement and circuit routince to become a certified Marpo workout trainer.
• Government Purchase: Available for open market Government and Military purchase through Ironcompany.com GSA contract47QSMA22D08NN.

Specifications:

• Dynamic Magnetic Brake System (DMB)
• Dynamic Resistance Range 1-200 lbs (0.5 kg - 90.7 kg)
• Electronic display tracks distance, time, speed and calories burned.
• Brake Mechanism allows for Bidirectional Rope Pulling.
• Sliding carriage enables quick and easy rope mode changes by lowering or raising the top pulley
• Permanently attached bench increases rope training possibilities and stabilizes entire unit (can be purchased without bench but must be anchored to the floor. Inquire with IRON COMPANY for pricing)
• Bench length is 3' and padding thickness is 3".
• Specially designed rope is soft and easy to grip, durable and long-lasting.
• Unit Power Requirements: 3 AA batteries (unit does not require AC power source)
• Unit Dimensions: 96”H x 82”L  x 40”W, (244cm x 208cm x 101cm)
• Unit Weight: 210 lbs (95.5 kg)
• Shipping Weight: 280 lbs. (127 kg)
• Shipping Dims: 21"H x 57"L x 42"W (53cm x 145cm x 107cm) (ships at class 100)

Warranty and Disclaimer

MARPO KINETICS warranty is as follows: lifetime limited on the frame, not including coatings, 1 years on mechanical parts, 1 year labor, 90 days on upholstery stitching only, cables and belts. Warranty is good and available to the original purchaser only as noted by MARPO KINETICS invoice and is not transferable or assumable. MARPO KINETICS cannot warrant products that have been abused, neglected and/or poorly maintained. All equipment should be reviewed at the time of delivery for damage, breakage, loosening of nuts and bolts, components and/or any other moving parts. Any and all claims for warranty must be received in writing within 70 days of defect. Do not alter, modify or redesign any MARPO KINETICS products or use any replacement parts or materials other than those components original to MARPO KINETICS as it will limit the warranty and liability of MARPO KINETICS. MARPO KINETICS reserves the right to change, replace or modify products, parts, accessories and/or design without notice. Deposits on cancelled orders will be subject to handling and restocking charges.

WHAT IS COVERED

This MARPO KINETICS commercial exercise equipment (Product.) is warranted to be free of all defects in material and workmanship.

WHO IS COVERED

The original purchaser or any person receiving the Product as a gift from the original purchaser.

WHO PAYS TRANSPORTATION AND INSURANCE FOR SERVICE

If the Product or any covered part must be returned to a service facility for repairs, We, MARPO KINETICS, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges for all subsequent years.

WHAT WE WILL DO TO CORRECT COVERED DEFECTS

We will ship to you any new or rebuilt replacement part or component, or, at our option, replace the Product. Such replacement parts are warranted for the remaining portion of the original warranty period.

WHAT IS NOT COVERED

Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the Products environment, rust or corrosion as a result of the Product(s) location, alterations or modifications without our written authorization or by failure on your part to use, operate and maintain the Product as set out in this document.

MAINTENANCE PROCEDURES

Cleaning

Proper cleaning will help ensure the life of your product. The following parts should be cleaned daily:

Upholstery; using a solution of mild soap and water. Rope; using rubbing (medical) alcohol on a cloth wipe down the rope to remove hand oil and grease.

Daily Part Inspection

Inspect the following parts daily for wear or damage:

Cables; inspect for wear or damage and proper tension (should not exceed 3/4" deflection). Pay close attention at bends and attachments points.

Hardware; inspect for looseness. Tighten as required using the proper tools.

Frames; inspect for wear or damage.

Rope; inspect for any snags, tears or fraying, cracks in the end caps or wear of the connecting chain links where the two link overlap.

Routine Inspection and Maintenance

The following maintenance should be performed approximately once a week:

• Visually inspect all hardware for loosening, tampering or wear.
• Check jam nut on all locations.

Once a month open the system covers and inspect:

All gears and sprockets to make sure they have no play on the axis. For this, check each connecting screw or set screw with the proper Allen wrench or screwdriver. If a screw or set screw is found loose remove one at a time, add LocTite to the treads and tighten back in place. Check the two metal wings attached to the break mechanism and ensure they are not bending or distorting in any way. Look for signs of metal fatigue or small cracks. If any of this is observed STOP using the unit and contact Marpo Kinetics for replacement parts.

Note: Use polishing compound (such as car wax) to clean and remove scuffs from powder-coated surfaces as necessary.

Important Reminders

DO NOT use abrasive or highly alkaline cleaners on the plastic or rubber components, or on the rope.

Never scrape plastic components with razor blades or other sharp instruments.

Benzene, gasoline, acetone or carbon tetrachloride should never be used on the plastic or rubber components, or on the rope.

Removal of Paint, Marking Pen, Labels

Butyl cellosolve works well for removal of paints and inks. Labels, stickers, and other adhesives may be removed using kerosene. When the solvent will not penetrate sticker material apply heat (hair dryer) to soften the adhesive and promote removal. Be sure to use any solvents according to directions. GASOLINE SHOULD NOT BE USED.

Shipping INCLUDED within the lower 48 states.

• Parcel: Smaller orders will ship via UPS ground.
• Freight: Freight deliveries are considered "curbside" only and will be delivered on a wooden pallet to a location at your address suitable for a tractor trailer at the driver’s discretion. Your delivery will include a 24-hour notification to schedule delivery for the next business day and lift gate service only. There will be an upcharge for any additional delivery services (i.e. inside delivery). Customers are required to be available at the time of delivery to inspect the shipment, make note of any freight damage or shortages, and sign the delivery receipt including notes of any damage or shortages.
• Additional Shipping Info: Additional shipping costs apply to AK, HI, PR, select “high cost” delivery zones (i.e. Martha’s Vineyard, Florida Keys, etc.), and anywhere else outside the lower 48 states. If you place an online order from anywhere outside the lower 48 states, an IRON COMPANY rep will forward the additional shipping cost to you for your approval. We will not charge your card for the additional shipping cost without your approval first.
• Shipping Weight: 280 lbs. (127 kg)
• Shipping Dims: 21"H x 57"L x 42"W (53cm x 145cm x 107cm) (ships at class 100)
