$16,779.00 IRON COMPANY

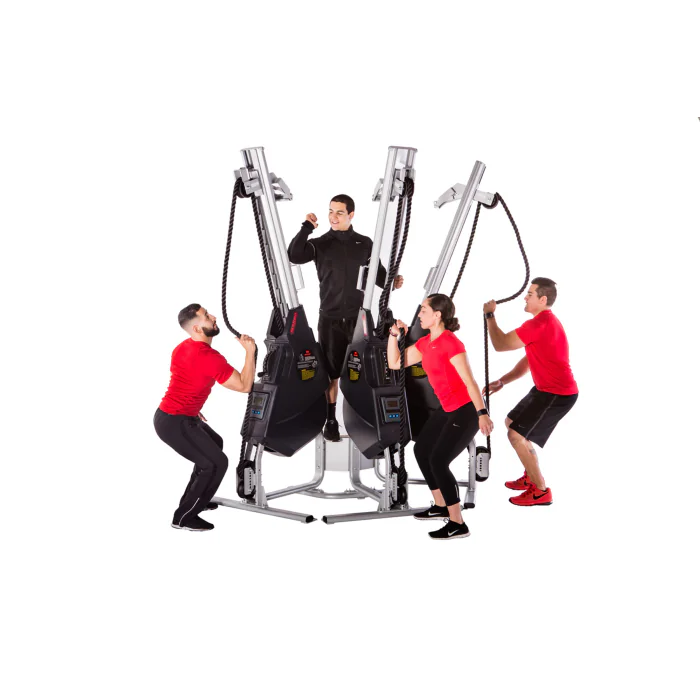

VMX THREE60 Circuit Rope Trainer - MARPO KINETICS (VMX-THREE60) – The VMX THREE60 Circuit Rope Trainer features three of the VMX rope training machines by Marpo Kinetics that are configured into a multi-user circuit. This multi-user, multi-mode, multi-functional rope training system allows for competitive team challenges and multi-user training sessions not possible with only one machine. The VMX removes the intimidation factor from rope climbing and makes it possible for all ages and fitness levels to participate. The VMX is not simply a rope trainer, its Isokinetic braking system offers more resistance the harder you pull which continuously adjusts to your pulling power along the entire length of your stroke. This lowers stress on the joints reducing potential for injury while maximizing workout efficiency.Adjust the resistance level between 1-200 lbs. for total body cardio workouts or muscle building isolation movements. Changing exercises is seamless. Simply by changing your grip or reversing the direction of the rope will engage entirely different muscles. Rope workouts can be performed standing, kneeling or sitting. The number of rope exercises that you can perform on the VMX is almost endless.

Have questions about the VMX THREE60 rope machine? Contact an IRON COMPANY® cardio equipment specialist today at 1-888-758-7527 or email quotes@ironcompany.com

  • Includes (3) VMX Rope Training Machines
  • Multi-user system allows for competative team challenges
  • Multi-mode adjustment for vertical, diagonal, horizontal and reverse pull movement that can be used for push and pull exercises for a total body workout
  • Easy adjust sliding carriage lowers or raises the top pulley allowing for increased versatility for strength training, cardio training and functional training
  • Accomodates low ceiling height limitations
  • Simulates rope climbing exercises at a resistance level anyone can manage
  • Use low resistance for cardio training and heavy resistance for strength training
  • Isokinetic braking system offers more resistance the harder you pull
  • Helps increase sustained strength and cardio endurance
  • Built for commercial use
  • Optional Marpo Education Training course available. Learn the functionality of the rope trainer, benefits it provides and the proper movement and circuit routince to become a certified Marpo workout trainer
  • Government Purchase: Available for open market Government and Military purchase through Ironcompany.com GSA contract GS-07F-0104M and CMAS contract 4-12-78-0066A
No reviews yet ... Have an opinion? Help others decide. Share your knowledge about this product by submitting a review.

    • Dynamic Magnetic Brake System (DMB)
    • Dynamic Resistance Range 1-200 lbs (0.5 kg - 90.7 kg)
    • Electronic display tracks distance, time, speed and calories burned
    • Brake Mechanism allows for Bidirectional Rope Pulling
    • Sliding carriage enables quick and easy rope mode changes by lowering or raising the top pulley
    • Specially designed rope is soft and easy to grip, durable and long-lasting
    • Unit Power Requirements: 3 AA batteries (unit does not require AC power source)
    • Unit Dimensions: 97”H x 90”L  x 46”W, (246cm x 227cm x 117cm)
    • Unit Weight: 600 lbs (272 kg)
    • Shipping Weight: 670 lbs. (304 kg)
    • Shipping Dims: 57"H x 41"L x 53"W (ships at class 100)
    • ADA Compliant

    Warranty and Disclaimer

    MARPO KINETICS warranty is as follows: lifetime limited on the frame, not including coatings, 1 years on mechanical parts, 1 year labor, 90 days on upholstery stitching only, cables and belts. Warranty is good and available to the original purchaser only as noted by MARPO KINETICS invoice and is not transferable or assumable. MARPO KINETICS cannot warrant products that have been abused, neglected and/or poorly maintained. All equipment should be reviewed at the time of delivery for damage, breakage, loosening of nuts and bolts, components and/or any other moving parts. Any and all claims for warranty must be received in writing within 70 days of defect. Do not alter, modify or redesign any MARPO KINETICS products or use any replacement parts or materials other than those components original to MARPO KINETICS as it will limit the warranty and liability of MARPO KINETICS. MARPO KINETICS reserves the right to change, replace or modify products, parts, accessories and/or design without notice. Deposits on cancelled orders will be subject to handling and restocking charges.


    This MARPO KINETICS commercial exercise equipment (Product.) is warranted to be free of all defects in material and workmanship.


    The original purchaser or any person receiving the Product as a gift from the original purchaser.


    If the Product or any covered part must be returned to a service facility for repairs, We, MARPO KINETICS, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges for all subsequent years.


    We will ship to you any new or rebuilt replacement part or component, or, at our option, replace the Product. Such replacement parts are warranted for the remaining portion of the original warranty period.


    Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the Products environment, rust or corrosion as a result of the Product(s) location, alterations or modifications without our written authorization or by failure on your part to use, operate and maintain the Product as set out in this document.



    Proper cleaning will help ensure the life of your product. The following parts should be cleaned daily:

    Upholstery; using a solution of mild soap and water. Rope; using rubbing (medical) alcohol on a cloth wipe down the rope to remove hand oil and grease.

    Daily Part Inspection

    Inspect the following parts daily for wear or damage:

    Cables; inspect for wear or damage and proper tension (should not exceed 3/4" deflection). Pay close attention at bends and attachments points.

    Hardware; inspect for looseness. Tighten as required using the proper tools.

    Frames; inspect for wear or damage.

    Rope; inspect for any snags, tears or fraying, cracks in the end caps or wear of the connecting chain links where the two link overlap.

    Routine Inspection and Maintenance

    The following maintenance should be performed approximately once a week:

    • Visually inspect all hardware for loosening, tampering or wear.
    • Check jam nut on all locations.

    Once a month open the system covers and inspect:

    All gears and sprockets to make sure they have no play on the axis. For this, check each connecting screw or set screw with the proper Allen wrench or screwdriver. If a screw or set screw is found loose remove one at a time, add LocTite to the treads and tighten back in place. Check the two metal wings attached to the break mechanism and ensure they are not bending or distorting in any way. Look for signs of metal fatigue or small cracks. If any of this is observed STOP using the unit and contact Marpo Kinetics for replacement parts.

    Note: Use polishing compound (such as car wax) to clean and remove scuffs from powder-coated surfaces as necessary.

    Important Reminders

    DO NOT use abrasive or highly alkaline cleaners on the plastic or rubber components, or on the rope.

    Never scrape plastic components with razor blades or other sharp instruments.

    Benzene, gasoline, acetone or carbon tetrachloride should never be used on the plastic or rubber components, or on the rope.

    Removal of Paint, Marking Pen, Labels

    Butyl cellosolve works well for removal of paints and inks. Labels, stickers, and other adhesives may be removed using kerosene. When the solvent will not penetrate sticker material apply heat (hair dryer) to soften the adhesive and promote removal. Be sure to use any solvents according to directions. GASOLINE SHOULD NOT BE USED.

    Shipping Included

    Freight cost included within the lower 48 states only. Ships via one of our various freight carriers in a protective wooden crate. This delivery is considered to be a curbside delivery only and will be delivered to a location at your address that is acceptable for a tractor trailer at the drivers discretion. Customers are required to be available at the time of delivery to inspect the shipment and sign the delivery receipt. Your shipment includes a 24-hour notification call and lift gate service.

    • Additional shipping cost applies to AK, HI, PR
    • Shipping Weight: 670 lbs. (304 kg)
    • Shipping Dims: 57"H x 41"L x 53"W (ships at class 100)
