Achieve Duals Series Ab / Low Back Combo Machine | TKO (8804)

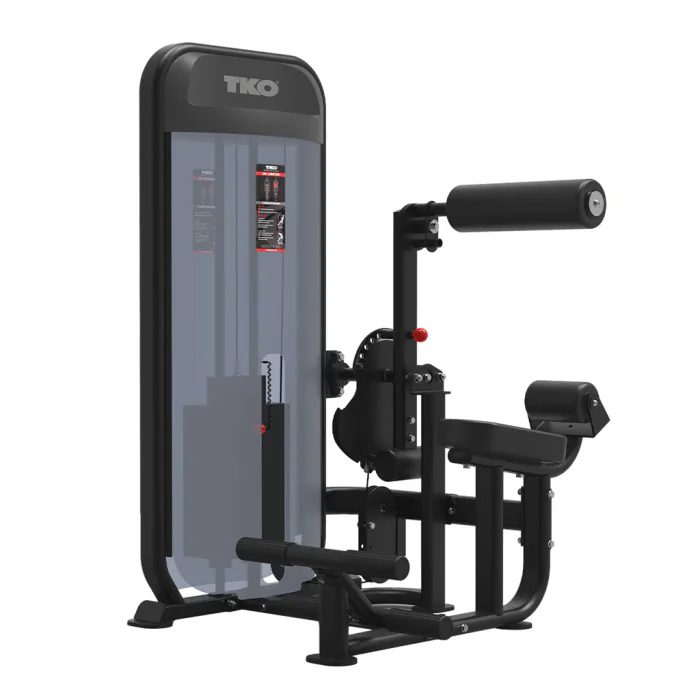

Achieve Duals Series Ab / Low Back Combo Machine | TKO (8804) – The Achieve Duals 8804 Ab and Low Back Machine from TKO Sports and Performance is a light commercial rated gym machine with selectorized weight stack and exercise combo functionality to provide the user and facility premium workout versatility and space efficiency. The TKO Achieve Dual Ab / Lower Back provides a combination of exercises in a compact space that includes forward abdominal crunches and reverse back extensions for development of the core muscles of the midsection. A 4 position range of motion adjustment arm allows this machine to accommodate a wide range of users. Upper and lower foot pegs and a back support roller pad keep the exerciser firmly in position for comfort, safety, and muscle isolation in either direction. Easy change roller arm adjustment allows quick transition from ab crunch exercise to reverse back extension without exiting the machine during core training.

The TKO Achieve Duals line of combo strength equipment provides high quality dual-functioning machines for light commercial facilities, from hotel to multi-family living to community centers. The compact footprint saves on space and stays within budget. The user friendly design makes working out simple and efficient for all levels of exercisers in your facility.

Looking to purchase a complete circuit of dual function strength equipment for a fire department gym or police department training facility? Contact an IRON COMPANY® cardio equipment specialist today at 1-888-758-7527 or email quotes@ironcompany.com.

TKO Achieve Duals 8804 Key Design Elements:

• 4 position arm adjustment
• Compact design
• 170 lb. weight stack

Features:

• FRAME – Compact, space efficient design requires minimal floor space
• SHROUD – Fully shrouded weight stack to protect equipment
• PLACARD – Simple, step by step instructions and training tips help users maximize workouts
• PAD – High-use upholstery supported by 70mm thick foam
• MOVEMENT – Easy to use, minimal adjustments and pre-stretch features allow for optimal exercise positions
• TUBING FRAME – Tubing: 2.5mm to 2.75mm square tube differ into any types, from 30x60mm to 50x100mm, electro-welded to maximum integrity
• PULLEY – Glass fiber reinforced nylon pulleys with deep V-groove provides secure cable seating and fluid bearing rotation
• CABLES – Aircraft spec 5mm American LOOS cable with a 2,000 lb breaking strength, end fitting tested to 250,000 cycles using full weight stack
• COLOR – Graphite paint with black upholstery

Click here to view the TKO Achieve Duals 8804 Ab / Low Back product brochure

Specifications:

• Assembled Dimensions: 41" L x 43" W x 60" H (104 cm x 109 cm x 152 cm)
• Weight Stack: 170 lbs.
• Product Weight: 389 lbs. (176 kg)
• Frame Color: Graphite
• Upholstery Color: Black
• Carton Dimensions and Weights:
• Main Frame Carton #1 – 61" L x 33" W x 7" H | 108 lbs.
• Main Frame Carton #2 – 43" L x 30" W x 12" H | 134 lbs.
• Weight Stack Carton #1 – 12" L x 10" W x 6" H | 79 lbs.
• Weight Stack Carton #2 – 12" L x 10" W x 6" H | 79 lbs.
• Total Carton Weight: 400 lbs.
• Shipping Dimensions and Weights (Palletized):
• Pallet #1 (Main Frame) – 61" L x 40" W x 25" H | 292 lbs. (Freight Shipping Class 100)
• Pallet #2 (Weight Stack) – 16" L x 40" W x 11" H | 210 lbs. (Freight Shipping Class 60)
• Total Shipping Weight: 502 lbs.

Light Commercial Warranty (Use in a non-dues paying facility):

• Frame – 10 Years
• Weight Stack Plates – 5 Years
• Moving Parts (Bearings, Bushings, Pulleys, Pull Pins, Guide Rods) – 1 Year
• Belts and Cables – 1 Year
• Upholstery (Stitching Only), Grips, Rollers, Roller Covers – 6 Months
• Shroud and Plastic Parts – 6 Months
• Unlisted Parts – 1 Year
• Labor – NONE

Shipping INCLUDED within the lower 48 states.

• Parcel: Smaller orders will ship via UPS ground.
• Freight: Freight deliveries are considered "curbside" only and will be delivered on a wooden pallet to a location at your address suitable for a tractor trailer at the driver’s discretion. Your delivery will include a 24-hour notification to schedule delivery for the next business day and lift gate service only. There will be an upcharge for any additional delivery services (i.e. inside delivery). Customers are required to be available at the time of delivery to inspect the shipment, make note of any freight damage or shortages, and sign the delivery receipt including notes of any damage or shortages.
• Additional Shipping Info: Additional shipping costs apply to AK, HI, PR, select “high cost” delivery zones (i.e. Martha’s Vineyard, Florida Keys, etc.), and anywhere else outside the lower 48 states. If you place an online order from anywhere outside the lower 48 states, an IRON COMPANY rep will forward the additional shipping cost to you for your approval. We will not charge your card for the additional shipping cost without your approval first.
