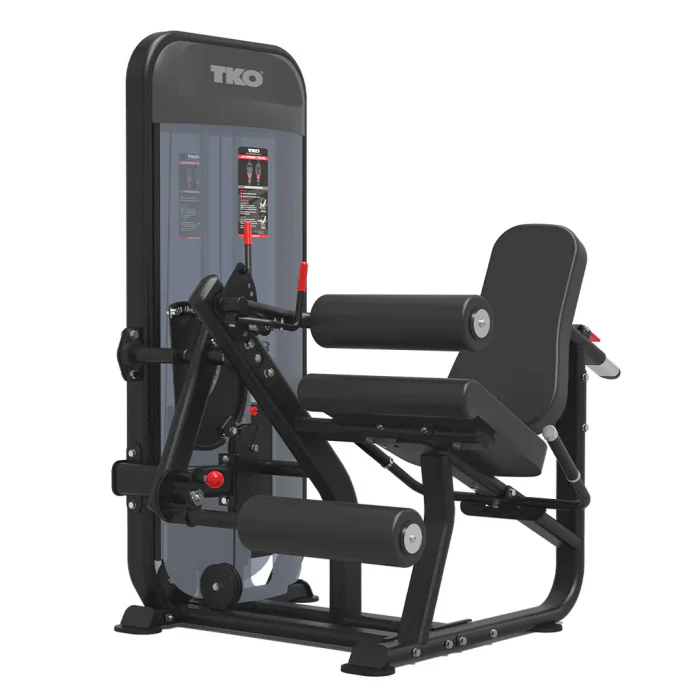

Achieve Duals Series Leg Extension / Leg Curl Combo Machine – TKO (8806)

Dual Function Combo Equipment
Light Commercial Rated
170 lb. Weight Stack
$3,390.00 IRON COMPANY
TKO Achieve Duals Series 8806 Leg Extension / Curl Machine for Strength Circuit
TKO Achieve Duals Series 8806 Leg Extension / Curl Machine for Strength Circuit
TKO Achieve Duals Series 8806 Leg Extension / Curl Machine for Strength Circuit

TKO Sports and Performance Achieve Duals Series

TKO Achieve Duals 8806 Leg Extension / Leg Curl – The Achieve Duals 8806 Leg Extension and Leg Curl Machine from TKO Sports and Performance is a light commercial rated gym machine with selectorized weight stack and exercise combo functionality to provide the user and facility premium workout versatility and space efficiency. The TKO Achieve Dual Leg Extension / Leg Curl provides a combination of lower body exercises in a compact space that includes leg extension and seated leg curl for development of the quadriceps and hamstring muscle groups. A 6 position back pad adjustment allows this machine to accommodate a wide range of users. Multiple starting positions on both leg extension and leg curl exercises allow proper range of motion and preferred pre-stretch. Easy access levers provide safe and easy pad engagement and quick change of muscle focus between quads and hamstrings without exiting the machine. Angled seat and back pad put body in correct ergonomic position to reduce stress on lower back during lower body exercises.

The TKO Achieve Duals line of combo strength equipment provides high quality dual-functioning machines for light commercial facilities, from hotel to multi-family living to community centers. The compact footprint saves on space and stays within budget. The user friendly design makes working out simple and efficient for all levels of exercisers in your facility.

Looking to purchase a complete circuit of dual function strength equipment for a hospitality workout room or community rec center gym? Contact an IRON COMPANY® cardio equipment specialist today at 1-888-758-7527 or email quotes@ironcompany.com.

TKO Achieve Duals 8806 Key Design Elements:

  • 6 position back pad adjustment
  • Compact design
  • 170 lb. weight stack


  • FRAME – Compact, space efficient design requires minimal floor space
  • SHROUD – Fully shrouded weight stack to protect equipment
  • PLACARD – Simple, step by step instructions and training tips help users maximize workouts
  • PAD – High-use upholstery supported by 70mm thick foam
  • MOVEMENT – Easy to use, minimal adjustments and pre-stretch features allow for optimal exercise positions
  • TUBING FRAME – Tubing: 2.5mm to 2.75mm square tube differ into any types, from 30x60mm to 50x100mm, electro-welded to maximum integrity
  • PULLEY – Glass fiber reinforced nylon pulleys with deep V-groove provides secure cable seating and fluid bearing rotation
  • CABLES – Aircraft spec 5mm American LOOS cable with a 2,000 lb breaking strength, end fitting tested to 250,000 cycles using full weight stack
  • COLOR – Graphite paint with black upholstery

Click here to view the TKO Achieve Duals 8806 Leg Extension / Leg Curl product brochure

No reviews yet ... Have an opinion? Help others decide. Share your knowledge about this product by submitting a review.


    • Assembled Dimensions: 58" L x 49" W x 60" H (147 cm x 124 cm x 152 cm)
    • Weight Stack: 170 lbs.
    • Product Weight: 425 lbs. (193 kg)
    • Frame Color: Graphite
    • Upholstery Color: Black
    • Carton Dimensions and Weights:
      • Main Frame Carton #1 – 61" L x 33" W x 10" H | 125 lbs.
      • Main Frame Carton #2 – 50" L x 41" W x 12" H | 160 lbs.
      • Weight Stack Carton #1 – 12" L x 10" W x 6" H | 79 lbs.
      • Weight Stack Carton #2 – 12" L x 10" W x 6" H | 79 lbs.
      • Total Carton Weight: 443 lbs.
    • Shipping Dimensions and Weights (Palletized):
      • Pallet #1 (Main Frame) – 61" L x 42" W x 27" H | 324 lbs. (Freight Shipping Class 100)
      • Pallet #2 (Weight Stack) – 16" L x 40" W x 11" H | 210 lbs. (Freight Shipping Class 60)
      • Total Shipping Weight: 534 lbs.


    Light Commercial (Use in a non-dues paying facility):

    • Frame – 10 Years
    • Weight Stack Plates – 5 Years
    • Moving Parts (Bearings, Bushings, Pulleys, Pull Pins, Guide Rods) – 1 Year
    • Belts and Cables – 1 Year
    • Upholstery (Stitching Only), Grips, Rollers, Roller Covers – 6 Months
    • Shroud and Plastic Parts – 6 Months
    • Unlisted Parts – 1 Year
    • Labor – NONE


    • Shipping cost included within the lower 48 states only
    • Additional shipping cost applies to AK, HI, PR and select “high cost” delivery zones
    • Ships via one of our various freight carriers on a wooden pallet
    • This item qualifies for curbside delivery only (or delivery to dock) and will be delivered to a location at your destination that is acceptable for a tractor trailer at the driver’s discretion
    • Customers are required to be available at the time of delivery to sign the delivery receipt
    • On most deliveries, customers will receive a 24-hour notification call and lift gate service
